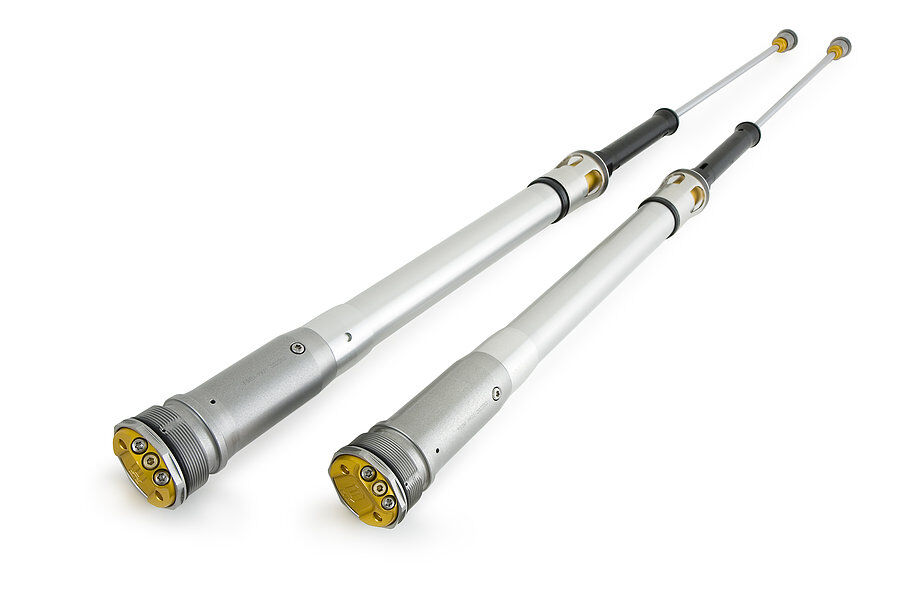

The Ohlins FGKA1794 TTX 22 fork cartridge is a front suspension upgrade developed for the Kawasaki KX 450F. It is designed to deliver a more controlled, consistent feel through the stroke with improved composure under braking and through turns. With external adjustability for both compression and rebound, it gives you practical tuning range for different conditions and riding preferences.

Ohlins | Made to race, perfected to ride

Ohlins cartridge kits focus on predictable damping control and clear front-end feedback. The goal is a stable, confidence-inspiring front end that remains consistent as pace and conditions change.

Who this cartridge kit is for

  • Riders wanting improved front-end feel and control from their KX 450F
  • Those chasing better stability under braking and more support mid-corner
  • Anyone who values adjustability to match riding style and conditions

Fork design & features

  • TTX 22 fork cartridge kit format for front fork damping control
  • Premium internal components aimed at consistent damping behaviour
  • Intended to improve overall handling confidence and consistency

Tuning controls

  • Separate compression adjustment
  • Separate rebound adjustment

Before you install

  • Confirm fitment for Kawasaki KX 450F before purchase and installation
  • Have installation and setup performed by a qualified suspension technician
  • Plan a post-install check to confirm settings suit your riding and conditions

Need help choosing?

If you are comparing cartridge options or want guidance on setup direction, have your bike details and current symptoms ready so the correct approach can be recommended.

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU FGKA1794
Model # TTX Cartridge kit
Barcode # FGKA1794
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.800m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Front cartridge
Spring Rate No Spring/s Supplied
Type Code T22DR1C1
Stroke Metal to Metal (mm) 302.0
Product Family TTX 22
Notes 08431- series springs
Fitted Spring Sold separately, see notes.
Rec. Ohlins Oil 01330-
