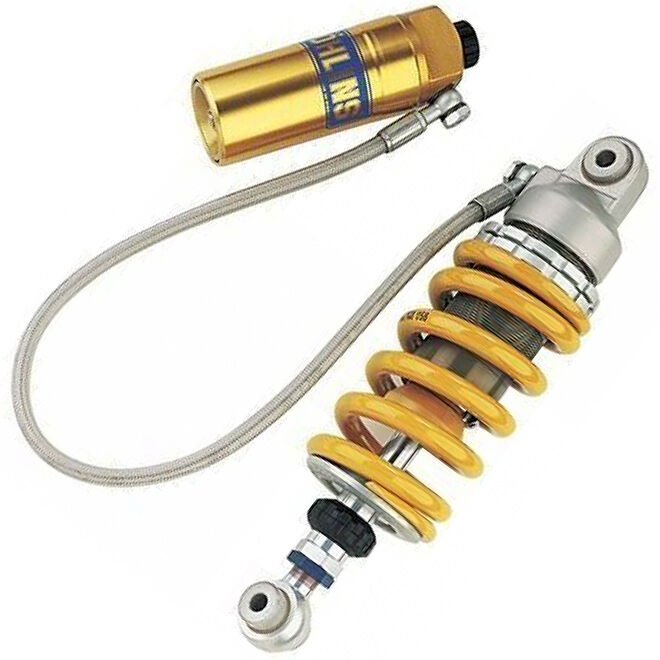

Name: Ohlins HO115 STX 46 Supersport Shock Rear for Honda CBR600 F2
Brand: Ohlins
SKU: HO115
Price: 2804.95 AUD
Availability: PreOrder

Description
Information

The Ohlins STX 46 Supersport rear shock for the Honda CBR600 F2 is built around a consistent, track-focused damping platform. It is designed to give clear feedback and stable chassis behaviour under load. This unit uses a separated gas and oil layout to help maintain damping consistency as temperatures change.

Ohlins | Made to race, perfected to ride

Developed from Ohlins racing experience, the STX 46 Supersport range is aimed at riders who want repeatable performance and adjustability without unnecessary complexity. It is intended for serious road and track use where damping control matters.

Who this shock is for

CBR600 F2 riders upgrading the rear for more controlled damping response
Track-day and supersport riders who want clearer feel during braking and cornering
Riders looking for a serviceable, tuneable rear mono shock platform

Shock design & features

STX 46 Supersport architecture
Gas and oil separated design for more stable damping behaviour
Rear mono shock configuration

Tuning controls

Rebound damping adjustment
Compression damping adjustment
Length adjustment to help fine-tune chassis attitude

Before you install

Confirm fitment for Honda CBR600 F2 and inspect linkage/bearings before installation
Set sag and baseline damping after installation to suit your rider weight and use
Record your starting settings so changes can be made methodically

Serviceability/lifecycle

This Ohlins unit is designed to be serviced and revalved. Periodic servicing helps keep damping consistent and maintains performance over time, especially with regular track use.

SKU	HO115
Model #	S46HR1C1L
Brand	Ohlins
Shipping Weight	5.0000kg
Shipping Size	0.300 x 0.300 x 0.500m
Type	Units

See our Shipping Information See our Frequently Asked Questions

Position (Front or Rear)	Rear Mono
Shock Length Eye to Eye (mm)	290.0 +12/-0
Spring Rate Standard	140.0 N/mm
Type Code	S46HR1C1L
Stroke Metal to Metal (mm)	51.0
Product Family	STX 46 Supersport
Fitted Spring	01093-54
Spring Colour	Yellow
Rec. Ohlins Oil	01309-
