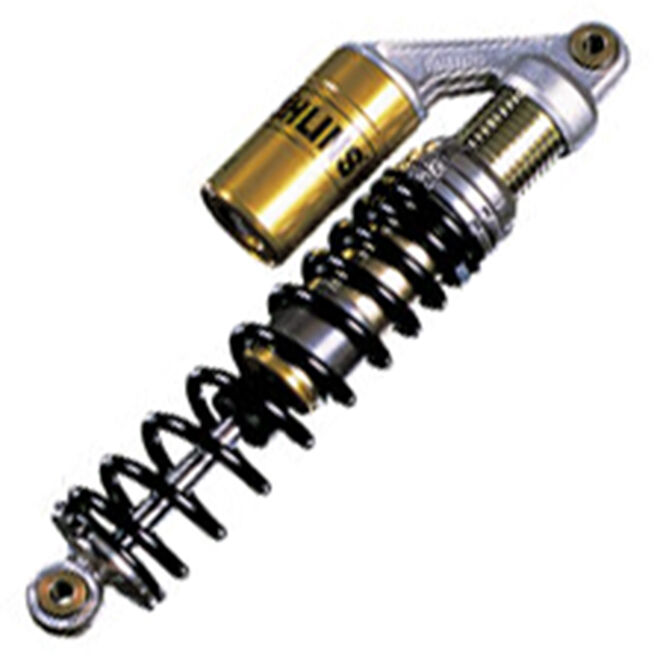

The Ohlins YA520 STX 36 twin shock kit is a rear suspension upgrade for Yamaha XJR 1200 and XJR 1300 models. Built around Ohlins’ STX architecture, it’s intended to deliver consistent damping control and a more settled chassis feel on the road. As a twin-shock arrangement, it suits the XJR’s layout while providing modern damping performance.

Ohlins | Made to race, perfected to ride

Ohlins suspension is developed from competition experience and engineered for predictable control in real-world riding. The YA520 is designed to improve stability and traction feel without compromising everyday usability.

Who this shock is for

  • XJR 1200 and XJR 1300 riders wanting a more controlled rear end under braking and through corners
  • Owners refreshing worn or inconsistent rear shocks with a matched twin-shock package
  • Riders who value tunability to suit load, tyres and road conditions

Shock design & features

  • STX 36 twin-shock layout for the Yamaha XJR platform
  • Oil/gas separated, gas-pressurised design to support consistent damping during extended riding
  • Rear twin fitment suited to the factory configuration

Tuning controls

  • Compression damping adjustment
  • Rebound damping adjustment

Before you install

  • Confirm motorcycle model and year compatibility for XJR 1200 / XJR 1300 before fitment
  • After installation, set sag and damping to suit your load and typical road use
  • If you’re changing ride height or tyre profiles, reassess settings to maintain balance

Serviceability/lifecycle

These shocks are designed to be serviced to maintain damping performance over time. Periodic inspection and oil/seal service will help keep the feel consistent, especially if the bike sees frequent spirited riding.

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU YA520
Model # S36P
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.300 x 0.300 x 0.500m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear Twin
Shock Length Eye to Eye (mm) 328.0
Spring Rate Standard 18.0 - 27.0 N/mm Progressive
Type Code S36P
Stroke Metal to Metal (mm) 96.0
Product Family STX 36 Twin
Fitted Spring 00480-03
