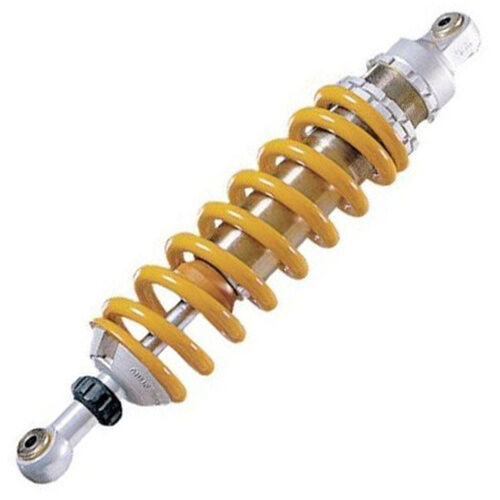

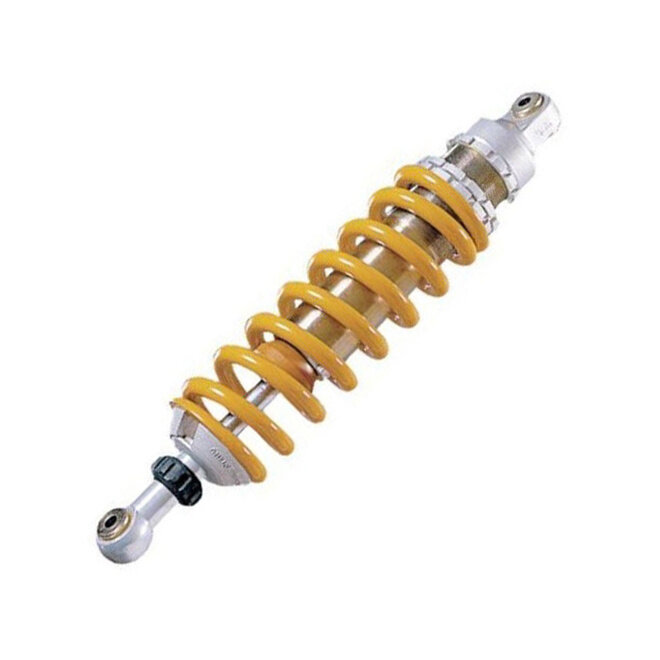

The Ohlins STX 46 Street rear shock for the Honda CB500X is built to provide consistent damping control for real-world road riding. It uses an oil and gas separated design to help maintain stability as conditions and temperatures change. The focus is clear feedback and predictable behaviour without over-complicating setup.

Ohlins | Made to race, perfected to ride

Developed from Ohlins racing experience, the STX platform is engineered for controlled movement and tyre contact over varying surfaces. On the CB500X, it is intended to improve composure through corners and reduce unwanted chassis movement under braking and acceleration.

Shock design & features

This is an STX 46 mono rear shock with a separated oil/gas arrangement for more consistent damping. The internal layout is aimed at smooth response across everyday road inputs while still offering support when the pace increases.

Tuning controls

Adjustment is provided for rebound damping, allowing you to fine-tune how quickly the shock extends after compression. Spring preload adjustment is also included to help set ride height and balance for rider load and luggage.

Base setup (factory preset)

The shock is supplied with an Ohlins base calibration intended as a starting point for the Honda CB500X. From there, rebound and preload can be set to suit your weight, tyre choice, and typical riding conditions.

Before you install

  • Confirm compatibility with your exact model and year CB500X and any linkage or ride-height changes.
  • Check surrounding clearance and hose/cable routing around the shock area.
  • Set sag after installation and then fine-tune rebound in small steps.

Serviceability/lifecycle

Ohlins shocks are designed to be serviced to maintain damping performance over time. Regular inspection and periodic oil/seal service will help keep the shock operating as intended, especially if used in harsh conditions.

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU HO705
Model # S46DR1
Barcode # HO705
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.300 x 0.300 x 0.500m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear Mono
Shock Length Eye to Eye (mm) 307.0
Spring Rate Standard 110.0 N/mm
Type Code S46DR1
Stroke Metal to Metal (mm) 63.0
Product Family STX 46 Street
Fitted Spring 61093-39
Spring Colour Yellow
Rec. Ohlins Oil 01309-
