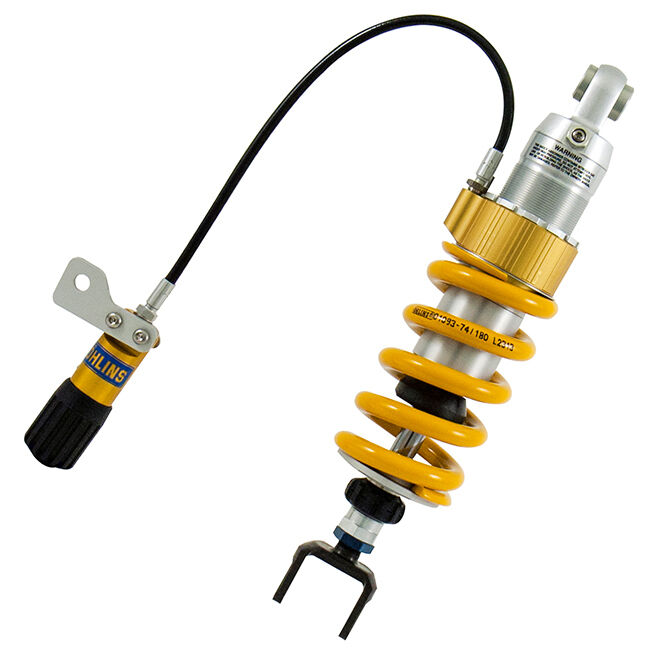

The Ohlins STX 46 Street rear shock for the Yamaha XVS 1100 Drag Star is built to deliver consistent damping control and clear feedback on real roads. It uses a gas-pressurised monotube design to help maintain damping stability as temperatures and conditions change. This unit is intended as a direct-fit rear replacement for riders who want more control and tunability than a basic stock shock.

Ohlins | Made to race, perfected to ride

Ohlins street shocks are engineered around predictable damping behaviour and serviceable construction. The focus is on chassis stability, grip feel and adjustability that can be set to suit the rider and load without compromising reliability.

Shock design & features

  • STX monotube architecture with gas pressurisation to reduce cavitation and help keep damping consistent.
  • Separate oil and gas zones (not an emulsion-type shock) for more stable response during repeated suspension movement.
  • Configured as a rear unit for this model application.

Tuning controls

  • Rebound damping adjustment to control how quickly the rear recovers after bumps and cornering loads.
  • Compression damping adjustment to control support under braking, acceleration and larger impacts.

Base setup (factory preset)

This shock is supplied with an Ohlins baseline setting intended to be a safe starting point for street use. Fine-tuning is typically done to match rider weight, luggage/passenger load and preferred ride feel.

Before you install

  • Confirm fitment for your exact Yamaha XVS 1100 Drag Star variant and any non-standard accessories that may affect clearance.
  • After installation, check fastener torque, chain/belt alignment considerations (where applicable), and verify full suspension movement without contact.
  • Plan a short test ride and adjust damping methodically, changing one circuit at a time.

Serviceability/lifecycle

Ohlins shocks are designed to be maintained rather than discarded. Routine inspection and periodic servicing help keep damping performance consistent and extend component life.

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU YA745
Model # S46DR1LS
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.300 x 0.300 x 0.500m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear Mono
Shock Length Eye to Eye (mm) 299.5 0/-12
Spring Rate Standard 130.0 N/mm
Type Code S46DR1LS
Stroke Metal to Metal (mm) 42.5
Product Family STX 46 Street
Fitted Spring 21117-49
Spring Colour Yellow
Rec. Ohlins Oil 01309-
