This kit has been developed to adapt the DR 650's rear suspension to Australian conditions both on road and off. We've been working on them and improving for years, with a proven track record of providing the best and most cost effective solutions.
In standard form the DR shock can't cope with any additional weight over a 75kg rider - the stock spring is really light and the dampening is minimal. The shock is a 40mm KYB unit which is compression adjustable only. While it's not the "trickest" shock out there it's a very reliable unit and easy to service, revalve and modify.
After a lot of testing, both in the shop on the shock dyno and with selected customers, we have a shock setting that makes whoops out of Finke manageable, does not beat you up on an 800km day and makes the mighty 650 a whole lot more fun to ride.
HiCalibre have developed a special coil spring just for the DR650 so no spacer is required and you get plenty of preload adjustment. Add a 20-054 HiCalibre Shock Spring suited to your weight, and the difference will transform your motorbike! Use the "FIND YOUR BIKE" in the black tab above and type in your rider weight with gear to get the right rate.
This is not a DIY kit, there is no need to modify any of the included parts, however it is not a job for you if you've never serviced a shock absorber before. If you think you'd need more guidance than the instructions provided in the photo in the listing please have a local suspension specialist fit them for you.
Included in this kit is:

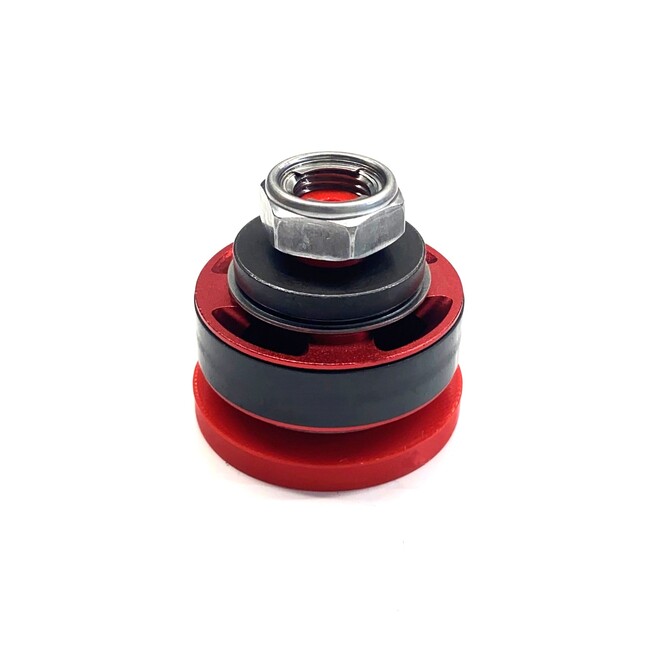

- A custom designed billet piston with an endless band and orings already installed
- A shim stack developed specifically for the DR650
- A new mechanical locking retaining nut
Remember that we also have a matching front damper rod forks tuning kit, matching HiCalibre 19-110 Fork Springs, or save money on a combined set with damper rod platinum valves plus front and rear springs - DIY Suspension Upgrade Kit.
SKU | 25-066-33 |
Brand | Teknik T-Valves |
Shipping Weight | 0.1000kg |
Shipping Size | 0.160 x 0.100 x 0.200m |
Unit Of Measure | ea |
If your Motorcycle is listed below, this product will suit:
- SUZUKI DR650SE 1997
- SUZUKI DR650SE 1998
- SUZUKI DR650SE 1999
- SUZUKI DR650SE 2000
- SUZUKI DR650SE 2001
- SUZUKI DR650SE 2002
- SUZUKI DR650SE 2003
- SUZUKI DR650SE 2004
- SUZUKI DR650SE 2005
- SUZUKI DR650SE 2006
- SUZUKI DR650SE 2007
- SUZUKI DR650SE 2008
- SUZUKI DR650SE 2009
- SUZUKI DR650SE 2010
- SUZUKI DR650SE 2011
- SUZUKI DR650SE 2012
- SUZUKI DR650SE 2013
- SUZUKI DR650SE 2014
- SUZUKI DR650SE 2015
- SUZUKI DR650SE 2016
- SUZUKI DR650SE 2017
- SUZUKI DR650SE 2018
- SUZUKI DR650SE 2019
- SUZUKI DR650SE 2020
- SUZUKI DR650SE 2021
- SUZUKI DR650SE 2022
