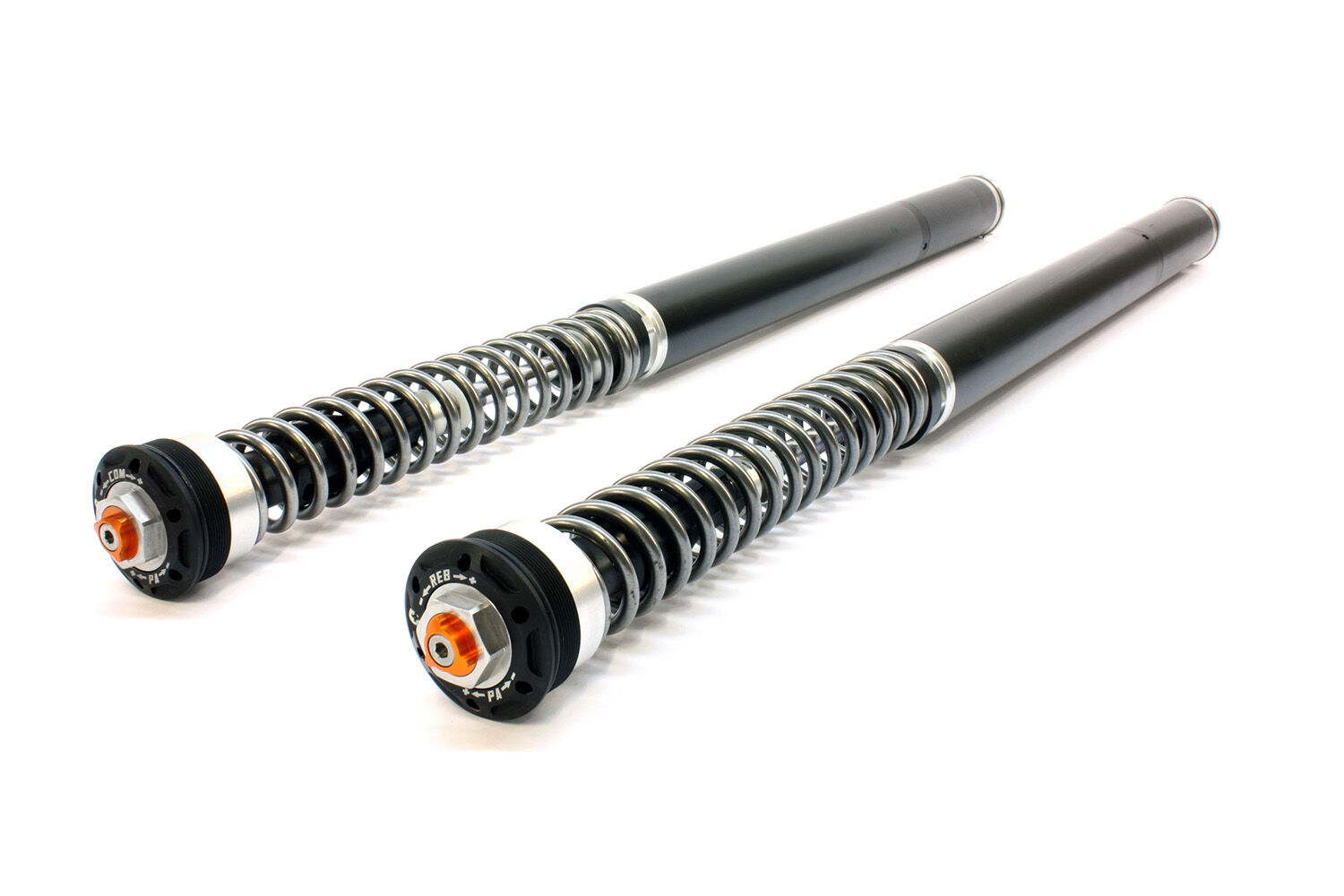

The Tractive X-TREME Fork Cartridge kit for the Ducati DesertX is a closed, pressurised cartridge fork upgrade designed to improve damping consistency and control across changing conditions. This kit uses a sealed cartridge architecture to keep the damping circuit stable and reduce the effects of oil aeration. No height change information is provided in the supplied data.
Design & features
- Closed, pressurised, sealed cartridge design for more consistent damping behaviour
- Cartridge-based internal upgrade intended for off-road and mixed-surface use
Tuning Controls
- Rebound damping adjustment
- Compression damping adjustment
Base Setup (factory preset)
No factory baseline settings are provided in the supplied data. Set-up will depend on rider mass, load, tyre choice and typical terrain.
Before You Install
- Confirm model fitment for the Ducati DesertX and year coverage based on your application
- Installation requires fork disassembly and correct oil level procedures
- If you are pairing with other suspension changes, plan a complete set-up session after installation
Serviceability/Lifecycle
This kit uses a sealed, pressurised cartridge architecture intended to maintain damping performance over demanding use. Service intervals and oil specifications are not provided in the supplied data.
Need Help Choosing?
If you are deciding between different cartridge options or want guidance on spring rate and tuning goals, share your rider weight (with gear), typical load and primary terrain so the correct configuration can be confirmed.
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 35DU21-D5308-TR |
| Model # | Active Feb 2025 |
| Barcode # | 35DU21D5308TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.900m |
| Unit Of Measure | Set |
| Type | X-TREME |
If your Motorcycle is listed below, this product will suit:
| Position (Front or Rear) | Front |
| Damping Adjustment Type | Rebound & Compression |
| Seat Height Change (mm) | Lowered -25 |
| Shock Length Eye to Eye (mm) | 866.0 |
| Spring Rate Standard | 6.4 N/mm |
| Type Code | X-TREME |
| Stroke Metal to Metal (mm) | 205.0 |
| Notes | Hydraulic end-stop |
| Fitted Spring | 6.4-370 |
