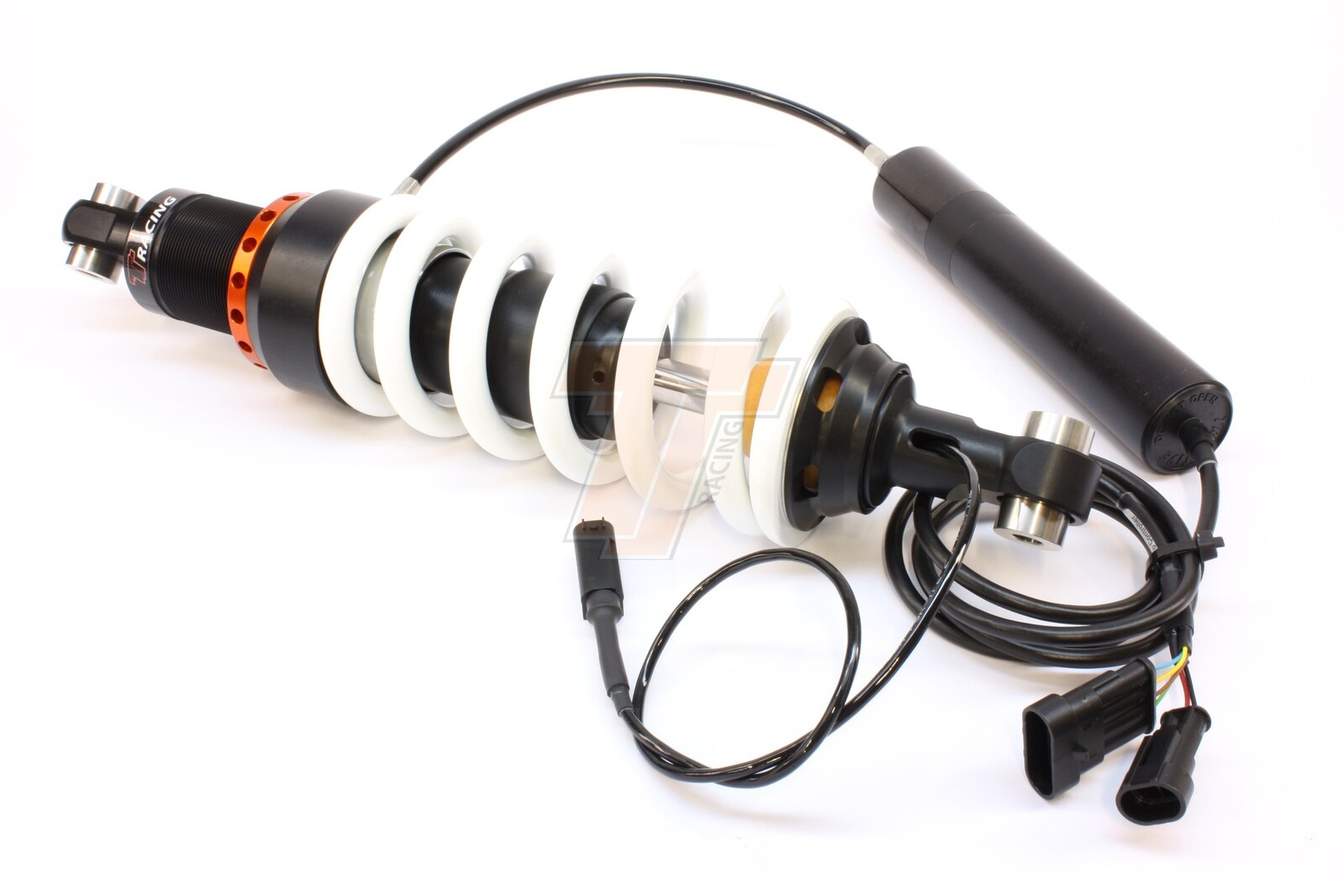

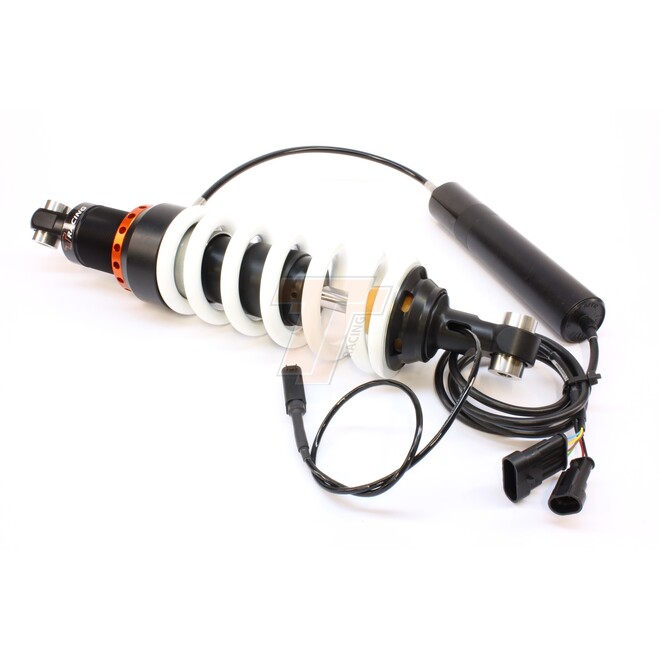

The TracTive eX-CITE + EPA rear shock for the BMW R1200GS (2010–2012) is a closed, pressurised damper with separated oil and gas to support consistent damping performance. This is the low version, reducing ride height by 25 mm. It is designed as a complete rear shock assembly for the model and year range listed.
Design & features
- Closed, pressurised shock design with separated oil and gas
- Low ride-height configuration (25 mm lower)
- Built as a dedicated rear shock for BMW R1200GS 2010–2012 fitment
Tuning Controls
- Rebound damping adjustment
- Electronically adjustable preload (EPA)
Base Setup (factory preset)
This shock is supplied with a factory baseline setup intended to suit the listed BMW application. Final setup should be confirmed after installation to match load, luggage and riding conditions.
Before You Install
- Confirm exact model and year: BMW R1200GS 2010–2012
- Note the low configuration changes static ride height by 25 mm
- Check clearance and cable/hose routing around the rear suspension at full travel
Is It Right For You?
Choose this shock if you want a low rear ride height and the convenience of electronically adjustable preload, along with external rebound adjustment. If you require different adjustment options, a different configuration may be more suitable.
Serviceability/Lifecycle
As a pressurised, separated oil/gas shock, periodic servicing is part of normal lifecycle maintenance to keep damping performance consistent over time.
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 46BM04-S1760-TR-WP |
| Model # | Discontinued |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | eX-CITE + EPA |
If your Motorcycle is listed below, this product will suit:
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Electronic |
| Shock Options - Hydraulic Preload Adjuster | Electro-hydraulic |
| Seat Height Change (mm) | Lowered -25 |
| Type Code | eX-CITE |
