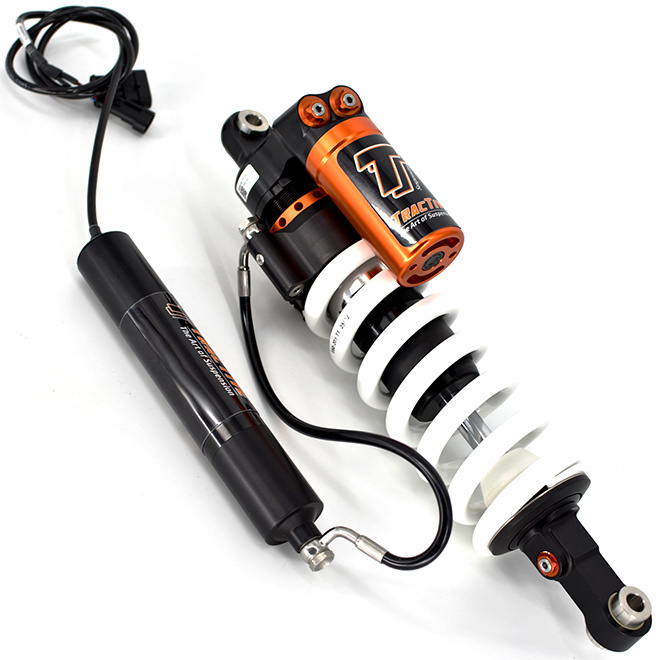

The TracTive X-TREME + EPA Rear shock for the BMW R1250GS (2018–2024) is a closed, pressurised, 46 mm rear shock built around a sealed cartridge design. This architecture keeps the damping oil under pressure to reduce cavitation and maintain consistent damping behaviour across varying conditions. This version is supplied in a Sport Chassis configuration with a 25 mm height increase.

Design & features

  • Closed, pressurised shock design for consistent damping and improved resistance to aeration.
  • Sealed cartridge construction to help maintain performance over time and under sustained load.
  • Remote reservoir with a fixed mounting style.
  • Supplied with an external preload adjuster (EPA) for convenient spring preload changes.

Tuning Controls

  • Triple adjustability: rebound damping and both low- and high-speed compression damping.
  • External preload adjustment via the included EPA.

Who is this for?

  • R1250GS riders who want broad, independent damping adjustment to tune for load, tyre choice, surfaces, and riding style.
  • Riders who regularly change between solo and luggage/passenger use and want faster preload changes via an external adjuster.
  • Those seeking a taller Sport Chassis set-up with a 25 mm ride-height increase.

Before You Install

  • Confirm the 25 mm Sport Chassis height change suits your intended seat height and handling goals.
  • Check clearance and routing for the remote reservoir and the external preload adjuster location.
  • After installation, set sag and then fine-tune damping in small steps, changing one control at a time.

Serviceability/Lifecycle

  • The sealed, pressurised construction is designed for consistent damping, and like any performance shock it should be serviced periodically to keep oil and seals in good condition.
  • If your use includes frequent long-distance or harsh conditions, plan preventative servicing to maintain performance.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46BM18-T5746-TR-01
Model # Discontinued
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME + EPA
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Electro-hydraulic
Seat Height Change (mm) Sport Chassis +25
Shock Length Eye to Eye (mm) 410.0
Type Code X-TREME
Stroke Metal to Metal (mm) 95.0
