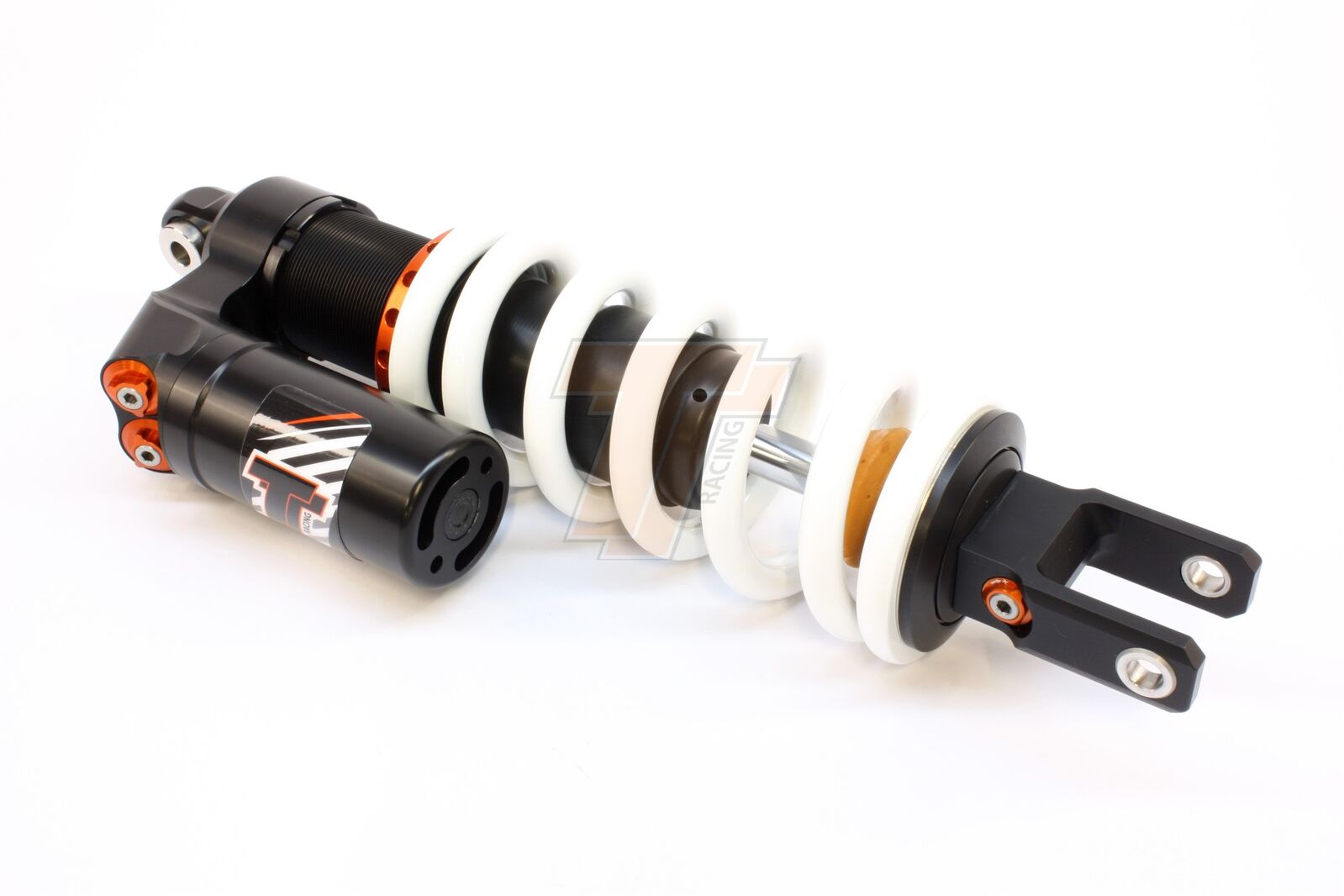

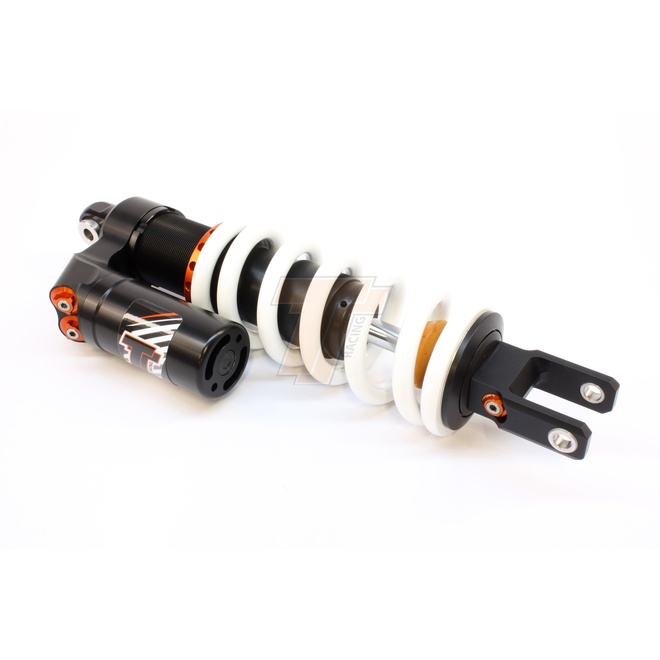

The Tractive X-TREME Shock for the Honda XL750 Transalp is a closed, pressurised rear shock built around a sealed cartridge-style damping system for consistent control across changing conditions. Its remote reservoir helps maintain damping stability during sustained use. This model does not indicate any ride height change in the provided data.

Design & features

  • Closed, pressurised design for more consistent damping behaviour compared with non-pressurised layouts.
  • Remote reservoir configuration to support damping consistency under demanding use.
  • Coil-sprung rear shock assembly.

Tuning Controls

  • Triple adjustable damping, with separate tuning for compression and rebound.
  • High-speed and low-speed compression adjustment are both included.
  • Preload adjustment is included (adjuster type not specified in the provided data).

Base Setup (factory preset)

This shock is supplied with Tractive’s baseline internal valving and damping settings intended as a starting point. Fine-tuning should be done after installation based on load, tyres and intended use.

Before You Install

  • Confirm fitment for your Honda XL750 Transalp and your model year before installation.
  • Check clearance and routing for the remote reservoir and hose prior to final assembly.
  • Set sag and verify all fasteners are tightened to the motorcycle manufacturer’s specifications.

Serviceability/Lifecycle

The sealed, pressurised cartridge architecture is designed to be serviced to maintain performance over time. Service intervals and internal component details are not provided in the input data.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46HO23-T5122-TR
Model # 46HO23-T5122-TR
Barcode # 46HO23T5122TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Seat Height Change (mm) Standard Height
Shock Length Eye to Eye (mm) 347.0
Spring Rate Standard 100 N/mm
Type Code X-TREME
Stroke Metal to Metal (mm) 83.0
Notes PDSII anti-bottoming
Fitted Spring 100-205
