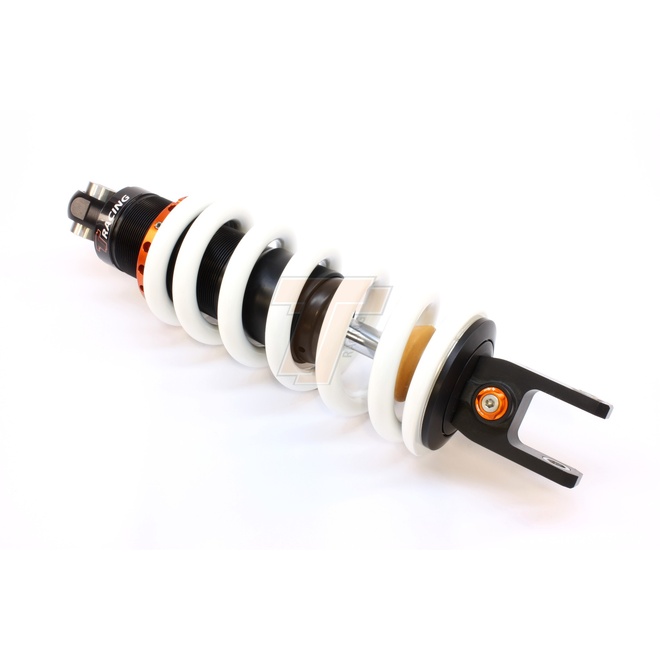

The Tractive X-CITE shock for the Husqvarna TR650 Terra is a closed, pressurised rear shock built around a sealed internal cartridge to keep damping consistent over long rides. This design separates oil and gas to reduce aeration and maintain control as conditions change. It uses a direct, manual rebound adjuster to fine-tune how quickly the shock returns after a bump. No ride-height change is indicated in the provided data.

Design & features

  • Closed, pressurised construction with oil/gas separation to help maintain stable damping.
  • Sealed cartridge architecture intended to protect damping components from contamination and cavitation effects.
  • Model-specific fitment for the TR650 Terra application stated in the product name.

Tuning Controls

  • Rebound damping adjustment to tailor response and recovery after impacts.

Base Setup (factory preset)

This shock is supplied with an internal base tune from Tractive. No additional baseline settings are provided in the input data.

Before You Install

  • Confirm compatibility with your exact Husqvarna TR650 Terra configuration and year before fitting.
  • After installation, check sag and overall balance front-to-rear as part of the setup process.

Serviceability/Lifecycle

As a pressurised, sealed-cartridge shock, servicing should be carried out by a qualified suspension technician with the correct tools for nitrogen-charged units. Service intervals and parts details are not provided in the input data.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46HQ13-R3104-TR
Model # 46HQ13-R3104-TR
Barcode # 46HQ13R3104TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-CITE
Format Rear
See our Shipping Information See our Frequently Asked Questions

If your Motorcycle is listed below, this product will suit:

Position (Front or Rear) Rear
Damping Adjustment Type Rebound
Seat Height Change (mm) Lowered -20
Shock Length Eye to Eye (mm) 337.0
Spring Rate Standard 110 N/mm
Spring Option -2 95-205
Spring Option +1 120-205
Spring Option -1 100-205
Spring Option +2 130-205
Manufacturer Note 1 Side and/or center stand might be too long
Damping System Separated oil/gas
Rebound Adjuster Position 8
Spring Preload Setting 15
Preload Adjustment Mechanical
Spring Type Linear, included
Piston Diameter (mm) 46
Suspension Unit Type Shock
Fitted Spring 110-205
Stroke Metal to Metal (mm) 73.0
Type Code X-CITE
