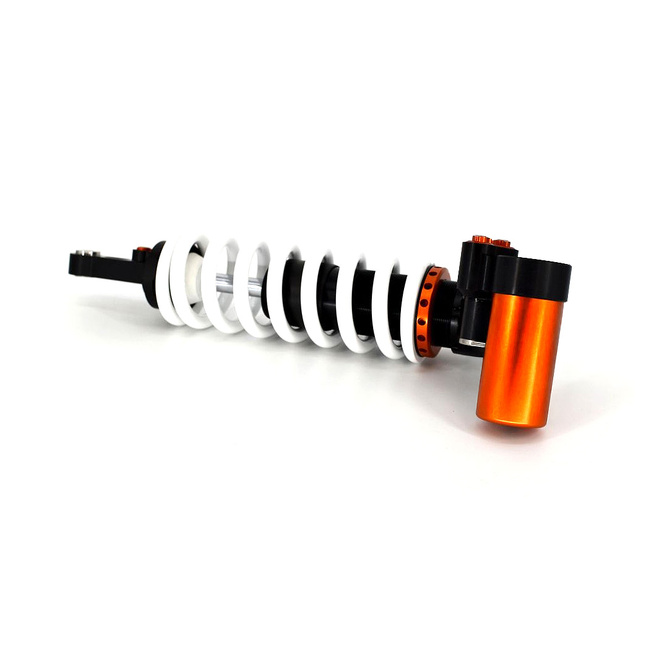

The Tractive X-TREME shock for the Husqvarna 701 ENDURO is a closed, pressurised shock absorber built around a separated oil/gas design for consistent damping and improved resistance to aeration in demanding conditions. It uses a remote reservoir connected by hose and includes a spring. This model provides triple-adjustable damping to support precise tuning for load, terrain and riding style.
Design & features
- Closed, pressurised shock absorber architecture
- Oil/gas separated via internal separation piston to help maintain damping consistency
- Remote reservoir on a hose for increased oil volume and stable operation over long, rough rides
- Supplied with spring
Tuning Controls
- Rebound damping adjustment
- Compression damping adjustment
- Additional damping adjustment (triple-adjustable configuration)
Who is this for?
- Riders who want a broader tuning range for mixed on-road and off-road use
- Owners setting the bike up for varying loads, luggage, or changing terrain
- Those looking for consistent damping behaviour from a pressurised, oil/gas separated shock design
Before You Install
- Confirm fitment for your specific Husqvarna 701 ENDURO model and year before installation
- Plan reservoir hose routing and mounting location to avoid heat and abrasion points
- Set sag and baseline adjustments after installation to suit rider weight and intended use
Serviceability/Lifecycle
- Pressurised, oil/gas separated construction is designed for stable performance between services
- Regular servicing helps maintain damping consistency and seal life, particularly with frequent off-road use
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 46KT19-T9137-TR-01 |
| Model # | 46KT19-T9137-TR-01 |
| Barcode # | 46KT19T9137TR01 |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | X-TREME |
If your Motorcycle is listed below, this product will suit:
- GASGAS ES 700 2022
- HUSQVARNA 701 Enduro 2016
- HUSQVARNA 701 Enduro 2017
- HUSQVARNA 701 Enduro 2018
- HUSQVARNA 701 Enduro 2019
- HUSQVARNA 701 Enduro 2020
- HUSQVARNA 701 Enduro 2021
- HUSQVARNA 701 Enduro 2022
- HUSQVARNA 701 Enduro 2023
- HUSQVARNA 701 Enduro 2024
- HUSQVARNA 701 Enduro 2025
- HUSQVARNA 701 Enduro 2026
- HUSQVARNA 701 LONG RANGE 2020
- HUSQVARNA 701 LONG RANGE 2021
- HUSQVARNA 701 LONG RANGE 2022
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Rebound & Compression High + Low Speed |
| Seat Height Change (mm) | Raised +25 |
| Shock Length Eye to Eye (mm) | 404.0 |
| Spring Rate Standard | 75 N/mm |
| Type Code | X-TREME |
| Stroke Metal to Metal (mm) | 106.0 |
| Notes | PDSII anti-bottoming |
| Fitted Spring | 75-235 |
