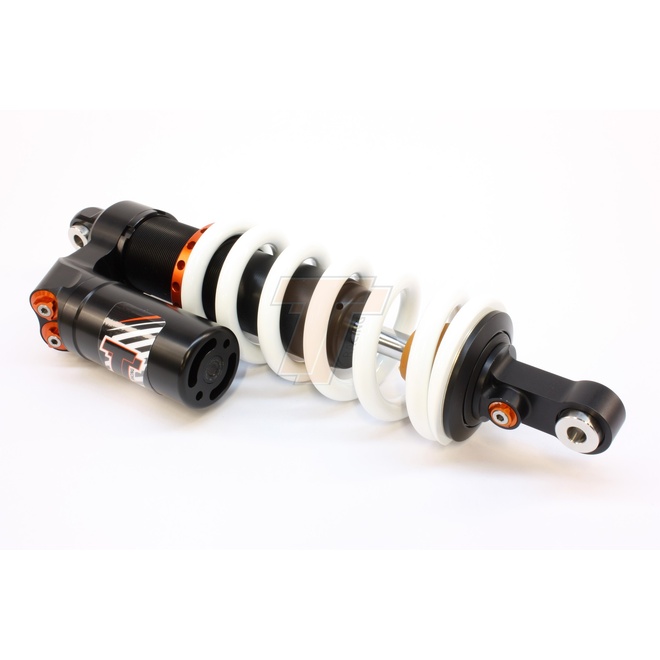

The Tractive X-TREME rear shock for the KTM 950 ADVENTURE is a closed, pressurised design that keeps the damping oil and gas managed for consistent control over long rides. This architecture helps reduce fade and maintains predictable behaviour as conditions change. It is built around a 46 mm shock body and uses an external reservoir configuration.
Design & features
- Closed, pressurised shock design for stable damping and improved resistance to fade
- 46 mm shock body format
- Remote (hose) reservoir layout to support oil volume and heat management
- Coil-spring rear shock assembly
Tuning Controls
- Triple-adjustable damping: compression and rebound with separate high- and low-speed compression adjustment
Who is this for?
- KTM 950 ADVENTURE riders who want broad damping adjustability to tune for load, terrain and riding style
- Riders looking for a pressurised, reservoir shock configuration suited to sustained mixed-surface use
Before You Install
- Confirm model fitment for your KTM 950 ADVENTURE and check clearance around the reservoir hose routing
- Set sag and baseline adjuster positions after installation before making further changes
Serviceability/Lifecycle
- As a rebuildable, pressurised shock, periodic servicing helps maintain damping consistency and seal performance over time
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 46KT06-T5107-TR |
| Model # | 46KT06-T5107-TR |
| Barcode # | 46KT06T5107TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | X-TREME |
| Format | Rear |
If your Motorcycle is listed below, this product will suit:
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Rebound & Compression High + Low Speed |
| Seat Height Change (mm) | Raised +20 |
| Shock Length Eye to Eye (mm) | 402.0 |
| Shock Length Eye to Eye (mm) | 392 |
| Spring Rate Standard | 130 N/mm |
| Spring Free Length (mm) | 235 |
| Spring Option -2 | 110-235 |
| Spring Option +1 | 140-235 |
| Spring Option -1 | 120-235 |
| Spring Option +2 | 150-235 |
| Damping Feature | PDSII anti-bottoming |
| Damping System | Separated oil/gas with reservoir |
| Rebound Adjuster Position | 10 |
| Low-speed Compression Adjuster Position | 10 |
| High-speed Compression Adjuster Position | 10 |
| Spring Preload Setting | 15 |
| Preload Adjustment | Mechanical |
| Spring Type | Linear, included |
| Piston Diameter (mm) | 46 |
| Suspension Unit Type | Shock |
| Fitted Spring | 130-235 |
| Notes | PDSII anti-bottoming |
| Stroke Metal to Metal (mm) | 93.0 |
| Type Code | X-TREME |
