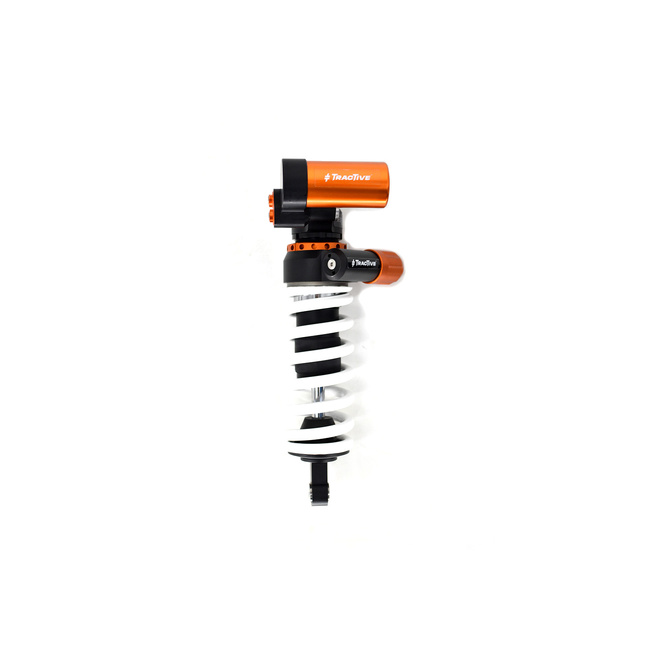

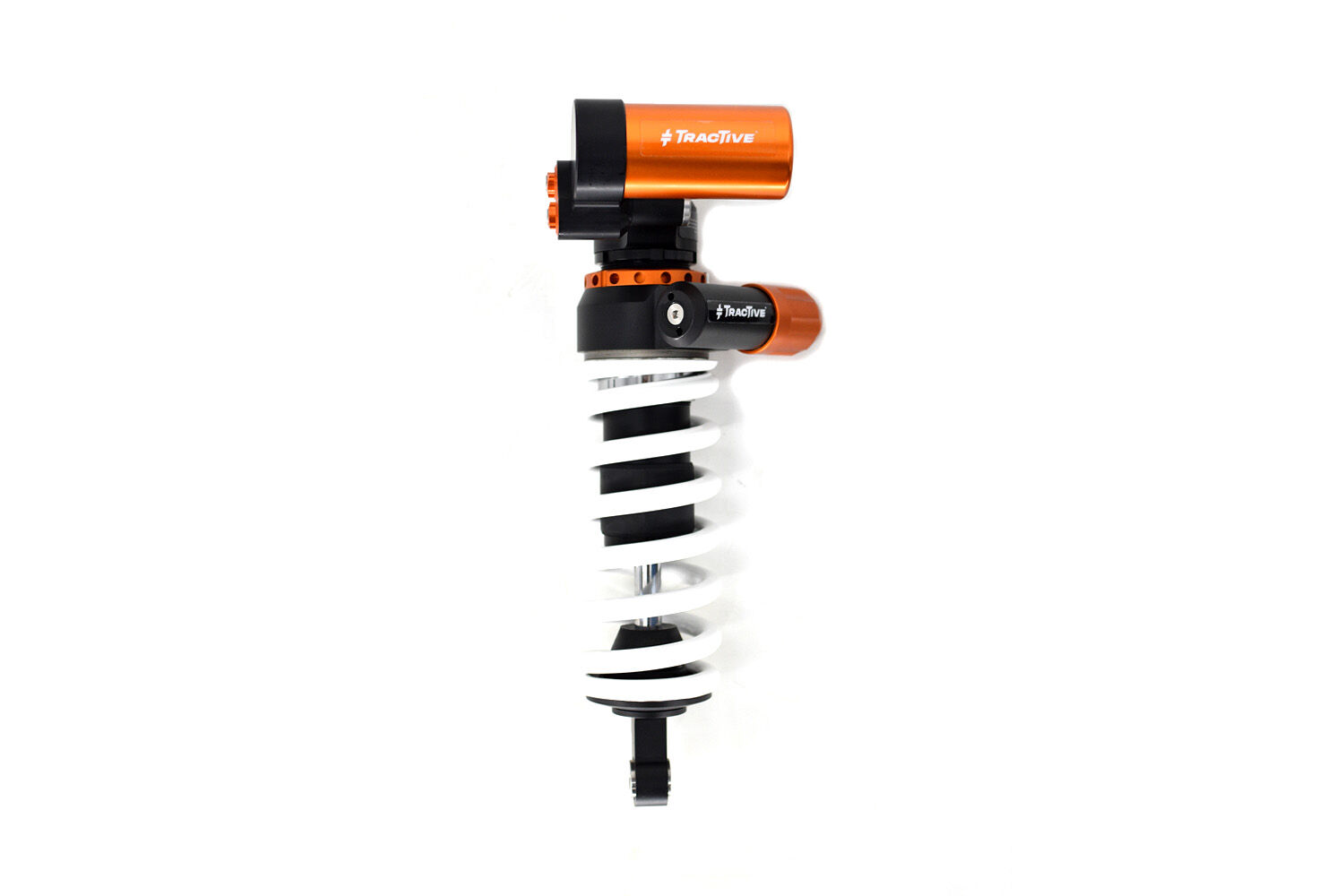

The Tractive X-TREME rear shock for the KTM 790 ADVENTURE (S) is built around a closed, pressurised damper with a piston-separated gas chamber to keep damping consistent under load and heat. The design uses an external reservoir in a fixed position for stable oil volume management. This listing does not specify any height change.

Design & features

  • Closed, pressurised shock design to reduce aeration and help maintain consistent damping.
  • Piston-separated oil and gas layout (not an emulsion design).
  • Fixed external reservoir configuration.
  • Coil-sprung shock.

Tuning Controls

  • Triple adjustable damping: rebound plus compression adjustment with separate high-speed and low-speed compression circuits.

Before You Install

  • Confirm your exact model is KTM 790 ADVENTURE (S) and that the supplied shock matches your application.
  • Set sag and verify clearance around the fixed reservoir during installation.
  • Any spring rate or ride-height details are not provided in the input data; select and set up accordingly.

Serviceability/Lifecycle

  • The pressurised, reservoir-equipped layout is intended for repeatable performance and routine servicing over the shock’s life.
  • Service intervals and oil/gas specifications are not provided in the input data.

Is It Right For You?

  • Suitable if you want broad tuning range with independent rebound and both high- and low-speed compression adjustment.
  • If you prefer minimal adjustment complexity, a simpler adjustment configuration may suit better.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46KT19-T5325-TR
Model # 46KT19-T5325-TR
Barcode # 46KT19T5325TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME
Format Rear
See our Shipping Information See our Frequently Asked Questions

If your Motorcycle is listed below, this product will suit:

Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Seat Height Change (mm) Standard Height
Shock Length Eye to Eye (mm) 365
Length Change (mm) Standard Height
Spring Rate Standard 110 N/mm
Spring Option -2 95-180
Spring Option +1 120-180
Spring Option -1 100-180
Spring Option +2 130-180
Damping Feature PDSII anti-bottoming
Damping System Separated oil/gas with reservoir
Rebound Adjuster Position 8 (0 deg)
Low-speed Compression Adjuster Position 7
High-speed Compression Adjuster Position 7
Spring Preload Setting 12 +12/-3
Preload Adjustment Hydraulic, with knob
Spring Type Linear, included
Piston Diameter (mm) 46
Suspension Unit Type Shock
Fitted Spring 110-180
Notes PDSII anti-bottoming
Stroke Metal to Metal (mm) 76
Type Code X-TREME
