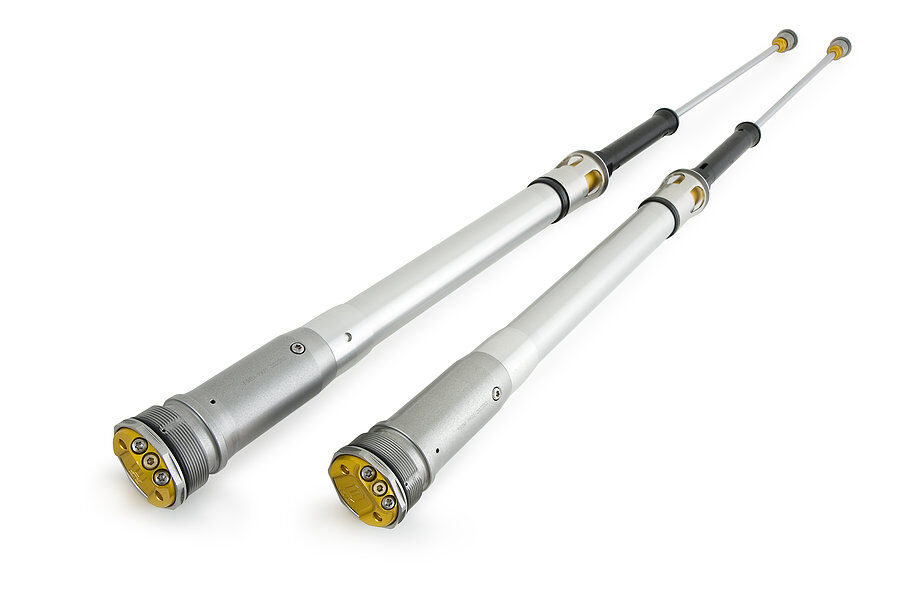

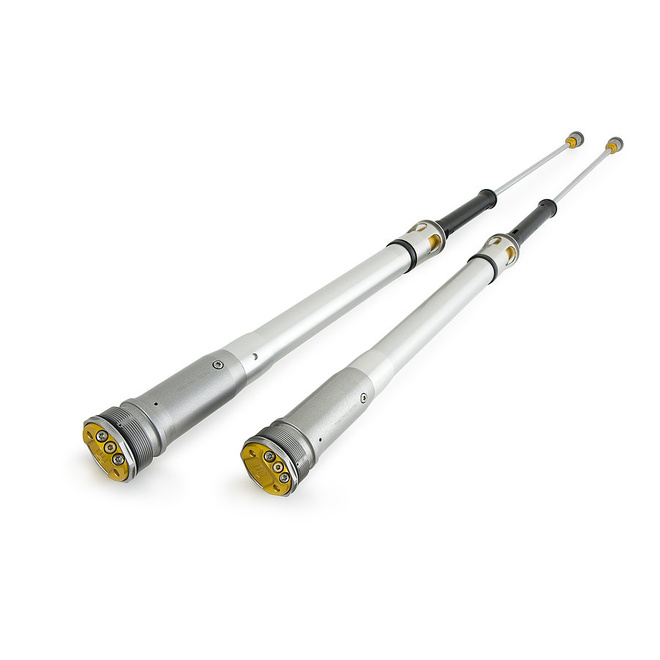

The Ohlins FGKA1593 TTX 22 fork cartridge is a front suspension upgrade for the Kawasaki KX 250F. It’s designed to deliver a more controlled and communicative feel from the front end through refined damping. The aim is improved stability and clearer feedback when riding hard.
Ohlins | Made to race, perfected to ride
Built around Ohlins’ TTX 22 cartridge design, this kit focuses on consistent damping behaviour and practical adjustability. It’s intended to help the fork track more cleanly and remain composed through changing loads.
Who this cartridge kit is for
Suited to KX 250F riders chasing better front-end feel and confidence under braking and through corners. It’s aimed at riders who want more control from their suspension setup without complicating the process.
Shock design & features
- TTX 22 front fork cartridge kit
- Premium internal components for consistent performance and durability
- Focus on improved braking stability and mid-corner feel
Tuning controls
- Separate compression adjustment
- Separate rebound adjustment
Before you install
This is a cartridge kit intended to be installed into the existing fork assembly. Correct installation and setup are important to achieve the intended damping behaviour and front-end balance.
Need help choosing?
If you’re comparing options for your KX 250F or want guidance on setup direction, confirm your bike details and riding goals before ordering so you select the right Ohlins kit.
Öhlins Motorcycle Suspension Warranty
New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.
Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.
This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.
- Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
- Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
- Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.
Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.
A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.
Warranty repairs
Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.
Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.
Öhlins spare parts and service kits
Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.
No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.
Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.
| SKU | FGKA1593 |
| Model # | TTX Cartridge kit |
| Barcode # | FGKA1593 |
| Brand | Ohlins |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.800m |
| Type | Units |
| Position (Front or Rear) | Front cartridge |
| Spring Rate | No Spring/s Supplied |
| Type Code | T22DR1C1 |
| Fork Length (mm) | 942.0 |
| Stroke Metal to Metal (mm) | 302.0 |
| Product Family | TTX 22 |
| Notes | 08765-series spring |
| Fitted Spring | Sold separately, see notes. |
| Rec. Ohlins Oil | 01330- |
