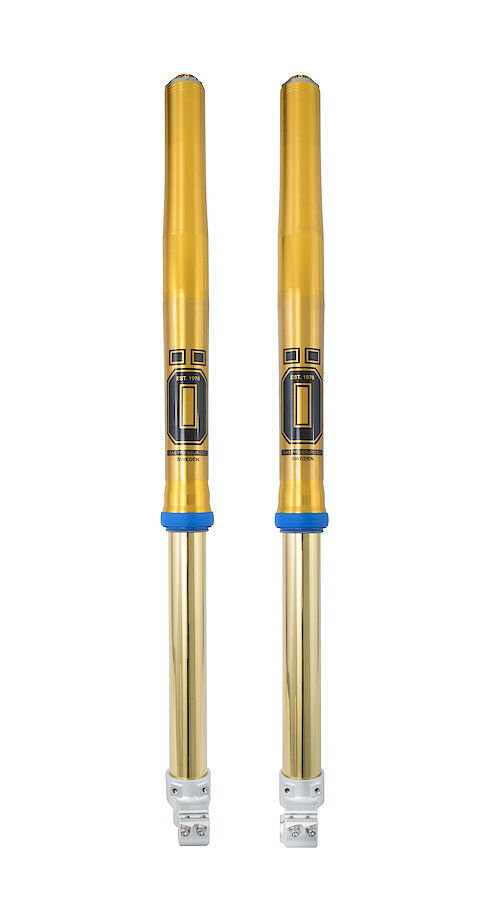

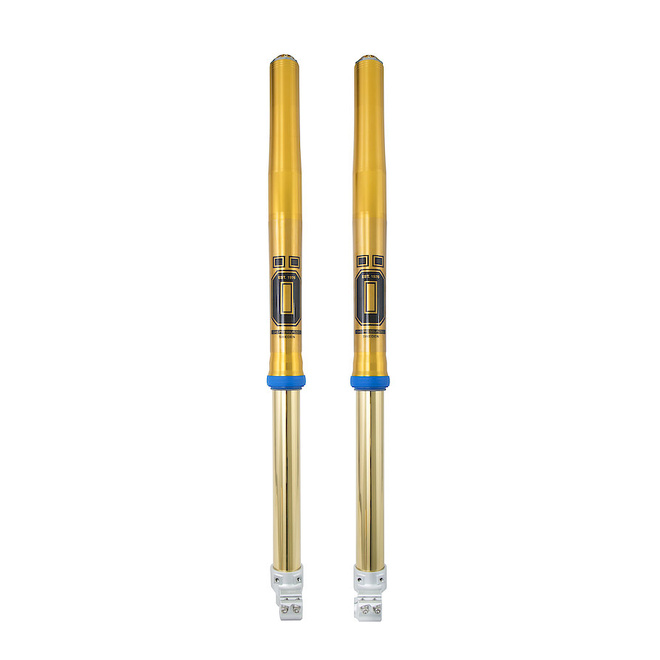

The Ohlins FGKT1690 STX 22 Fork Cartridge Kit is designed to improve the front suspension performance of KTM 85 SX models. Built to deliver refined damping behaviour, it supports better control and confidence at the front wheel. With external tuning options, it allows you to tailor feel and response to suit your riding and conditions.
Ohlins | Made to race, perfected to ride
Ohlins cartridge kits are developed to deliver consistent, controlled damping and clearer front-end feedback. This kit focuses on improving stability and feel through the stroke for more predictable handling.
Who this kit is for
- Riders chasing improved front-end feedback and control
- Those wanting better stability under braking and into corners
- Owners who prefer a tunable front end for varying tracks and conditions
Shock design & features
- STX 22 fork cartridge kit format
- Premium internal components for consistent damping performance
- Designed to improve composure and communication from the front end
Tuning controls
- Compression adjustment
- Rebound adjustment
Before you install
- Confirm compatibility with your exact KTM 85 SX model and year
- Professional installation is recommended to ensure correct assembly and settings
- After installation, set adjustments to suit rider preference and riding conditions
Is it right for you?
If you want a more planted, confidence-inspiring front end with the ability to fine-tune damping, this Ohlins cartridge kit is a strong fit for KTM 85 SX riders looking for improved control and stability.
Öhlins Motorcycle Suspension Warranty
New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.
Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.
This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.
- Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
- Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
- Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.
Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.
A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.
Warranty repairs
Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.
Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.
Öhlins spare parts and service kits
Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.
No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.
Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.
| SKU | FGKT1690 |
| Model # | STX Cartridge kit MX |
| Barcode # | FGKT1690 |
| Brand | Ohlins |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.800m |
| Type | Units |
| Position (Front or Rear) | Front cartridge |
| Spring Rate | No Spring/s Supplied |
| Type Code | T22DR1C1 |
| Stroke Metal to Metal (mm) | 269.0 |
| Product Family | STX 22 |
| Notes | 08789-series springs |
