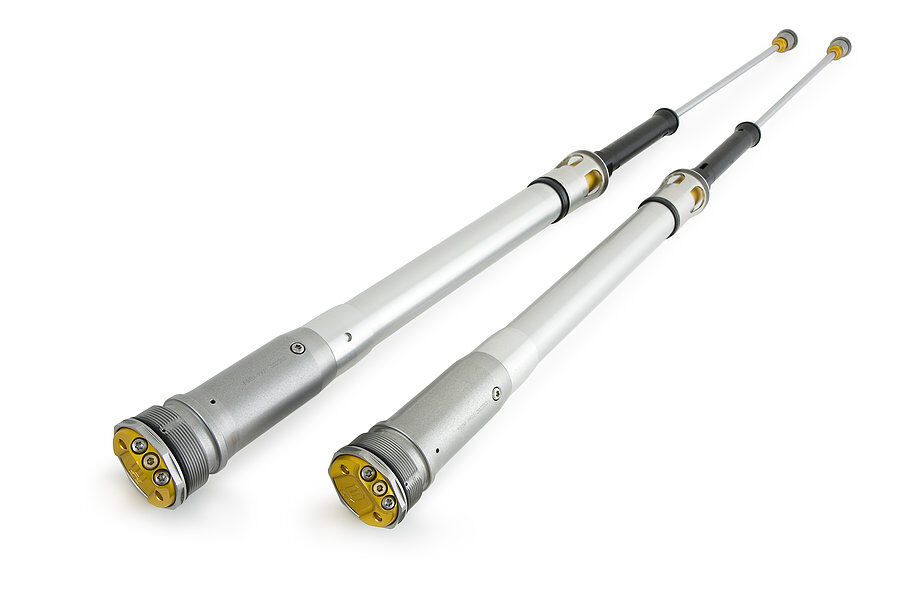

Ohlins FCX1304 TTX 22 Fork Cartridge Front for KTM 125 XC, 150 EXC, 150 XC-W, 250 EXC, 250 EXC Six days, 250 EXC-F, 250 EXC-F Six days, 250 XC
Ohlins Suspension - Engineered for Performance
SKU: FCX1304
The Ohlins FCX1304 TTX 22 fork cartridge kit is designed to refine front-end damping control for selected KTM models. It focuses on delivering a more composed feel under braking and through corners, with adjustment range to tailor the setup to rider preference. Built around Ohlins cartridge technology for consistent performance across varying conditions.
Ohlins | Made to race, perfected to ride
Developed from Ohlins suspension know-how, this cartridge kit targets improved control and feedback at the front wheel. It is intended for riders looking to tune their fork behaviour beyond standard internals.
Who this cartridge kit is for
- Riders chasing clearer front-tyre feel and more stability when braking
- Owners of KTM 125 XC, 150 EXC, 150 XC-W, 250 EXC, 250 EXC Six days, 250 EXC-F, 250 EXC-F Six days and 250 XC models listed for this kit
- Those who want external adjustment to suit different tracks, terrain or pace
Shock design & features
- TTX 22 fork cartridge kit configuration
- Premium internal components aimed at consistent damping and durability
- Improved braking stability and mid-corner composure compared with stock damping behaviour
Tuning controls
- Separate compression and rebound adjustment to fine-tune damping response
Before you install
- Confirm fitment against your exact KTM model and year before purchase
- Professional installation is recommended to ensure correct assembly and setup
Öhlins Motorcycle Suspension Warranty
New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.
Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.
This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.
- Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
- Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
- Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.
Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.
A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.
Warranty repairs
Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.
Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.
Öhlins spare parts and service kits
Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.
No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.
Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.
| SKU | FCX1304 |
| Model # | T22DR1C1 |
| Barcode # | FCX1304 |
| Brand | Ohlins |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.800m |
| Type | Units |
| Position (Front or Rear) | Front cartridge |
| Spring Rate | No Spring/s Supplied |
| Type Code | T22DR1C1 |
| Fork Length (mm) | 940.0 |
| Stroke Metal to Metal (mm) | 298.0 |
| Product Family | TTX 22 |
| Notes | Spring series 08765-XX, springs not included. |
| Fitted Spring | Sold separately, see notes. |
| Rec. Ohlins Oil | 01330- |
