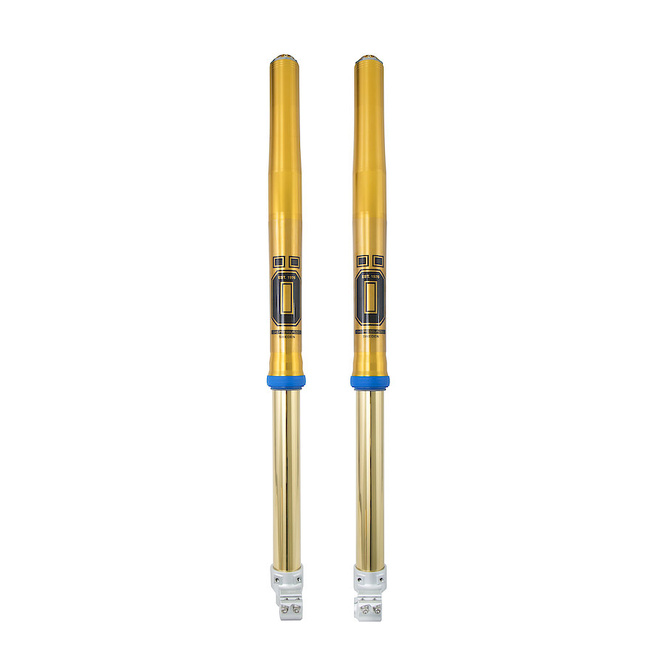

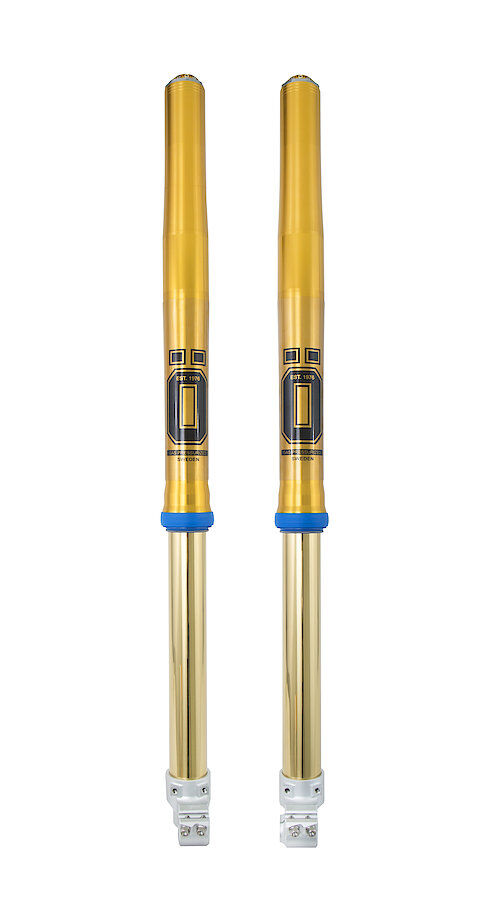

The Ohlins FGKT1594 TTX 22 fork cartridge kit is designed to improve front-end control and consistency on the KTM 450 SX-F. It focuses on delivering a more settled feel under braking and clearer feedback through the bars. Adjustment is built in so you can tune the damping to suit your track conditions and riding style.
Ohlins | Made to race, perfected to ride
Ohlins suspension components are developed with a strong focus on damping control, feel and repeatability. The TTX 22 cartridge format is aimed at riders chasing more confidence and precision from the front end.
Who this cartridge kit is for
- KTM 450 SX-F riders wanting improved stability and front-end feel
- Riders who prefer suspension with clear, tunable damping response
- Anyone looking to refresh or upgrade the fork internals with an Ohlins kit
Shock design & features
- TTX 22 fork cartridge kit construction
- Designed to enhance braking stability and mid-corner feel
- Premium internal components for consistent performance and durability
Tuning controls
- Separate compression damping adjustment
- Separate rebound damping adjustment
- Adjustment range intended to support fine-tuning for conditions and preference
Before you install
- Confirm fitment for your KTM 450 SX-F market/region as listed
- Professional installation is recommended to ensure correct assembly and setup
- Plan time for initial tuning after installation to match your riding conditions
Need help choosing?
If you are matching this kit with other suspension changes or want guidance on setup direction, contact Teknik Motorsport with your bike details and current issues you want to solve.
Öhlins Motorcycle Suspension Warranty
New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.
Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.
This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.
- Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
- Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
- Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.
Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.
A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.
Warranty repairs
Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.
Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.
Öhlins spare parts and service kits
Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.
No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.
Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.
| SKU | FGKT1594 |
| Model # | TTX Cartridge kit |
| Barcode # | FGKT1594 |
| Brand | Ohlins |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.800m |
| Type | Units |
| Position (Front or Rear) | Front cartridge |
| Spring Rate | No Spring/s Supplied |
| Type Code | T22DR1C1 |
| Fork Length (mm) | 948.0 |
| Stroke Metal to Metal (mm) | 307.0 |
| Product Family | TTX 22 |
| Notes | 08765-series spring |
| Fitted Spring | Sold separately, see notes. |
| Rec. Ohlins Oil | 01330- |
