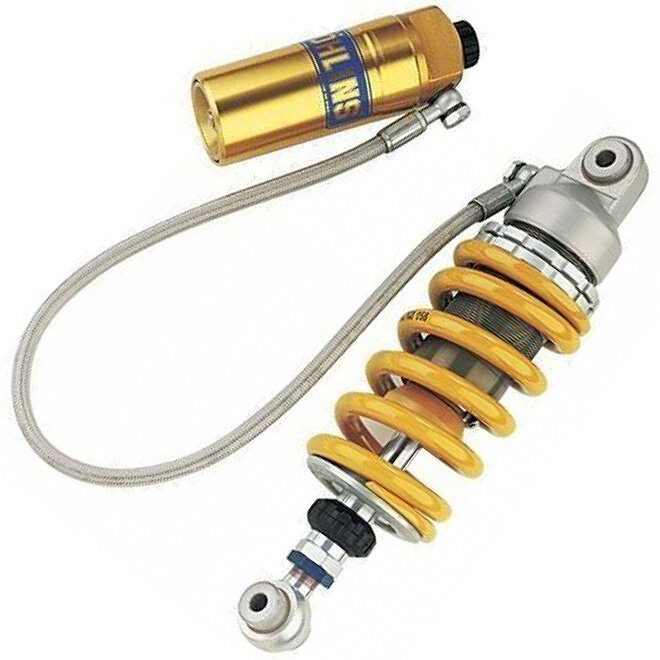

The Ohlins STX 46 Street rear shock for the Honda CBR500R is built to deliver controlled damping and clear chassis feedback for everyday road riding. It is designed as a direct-fit replacement to refresh suspension performance and support more consistent handling. This unit uses a gas-pressurised, oil/gas separated damping design to help maintain stable behaviour over long rides.

Ohlins | Made to race, perfected to ride

Ohlins road shocks draw on the same core damping principles used across the brand’s performance range, with a focus on predictable response and durability. The aim is improved control without compromising ride quality for street conditions.

Who this shock is for

Suited to CBR500R riders who want a more planted feel than the standard rear suspension can provide, particularly when pace increases or road surfaces become uneven. It is also a sensible option when the original shock is worn and no longer holds consistent damping.

Shock design & features

This is a mono rear shock from the STX 46 Street family, using a gas-pressurised, oil/gas separated internal layout. That architecture is intended to keep damping more consistent during repeated suspension movement and temperature change. The unit is supplied with an Ohlins spring fitted.

Tuning controls

Adjustment is provided for rebound damping and compression damping, allowing you to balance chassis stability with bump compliance. Spring preload adjustment is also included to help set ride height and sag to suit rider load and use.

Before you install

Confirm the motorcycle model and year compatibility for your CBR500R before fitting. After installation, set sag and then fine-tune rebound and compression in small steps so changes are easy to evaluate. If your linkage bearings or swingarm bushes are worn, address those first to get the best result from the new shock.

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU HO821
Model # S46HR1C1L
Barcode # HO821
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.300 x 0.300 x 0.500m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear Mono
Shock Length Eye to Eye (mm) 307.0 +8/-3
Spring Rate Standard 110.0 N/mm
Type Code S46HR1C1L
Stroke Metal to Metal (mm) 55.0
Product Family STX 46 Street
Fitted Spring 61093-39
Spring Colour Yellow
Rec. Ohlins Oil 01309-
