Name: Ohlins KA610 STX 36 Scooter Shock Rear for Kawasaki Z125
Brand: Ohlins
SKU: KA610
Price: 1017.45 AUD
Availability: PreOrder

Description
Information

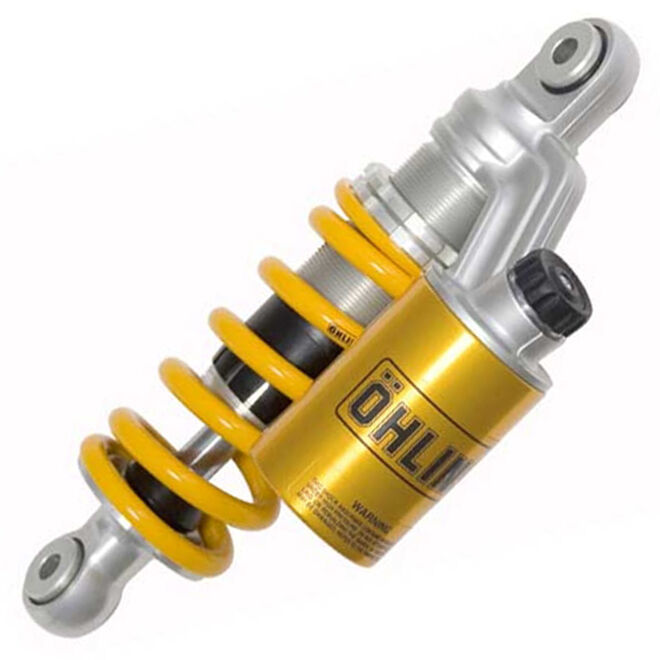

The Ohlins KA610 STX 36 rear shock is built to give the Kawasaki Z125 a more controlled and consistent rear end under everyday street use and harder riding. It uses a gas-pressurised, oil/gas separated design to help keep damping stable as conditions change. With external adjustments, it allows you to tailor feel and chassis balance without guesswork.

Ohlins | Made to race, perfected to ride

Developed from Ohlins suspension engineering across road and race, the STX 36 Scooter platform focuses on predictable damping and durable components. The aim is improved grip, better stability and clearer feedback through the bike.

Who this shock is for

Riders wanting more composure and traction from the rear of a Kawasaki Z125
Anyone chasing better chassis control under braking and corner entry/exit
Owners who prefer a tuneable shock rather than a fixed OEM-style unit

Shock design & features

STX 36 architecture designed for scooter and small-capacity applications
Gas-pressurised damping with oil/gas separation for consistent performance
Rear mono-shock configuration for the Z125

Tuning controls

Compression damping adjustment
Rebound damping adjustment

Before you install

This is a rear mono shock for Kawasaki Z125 fitment
Supplied with a fitted spring, with an optional spring included in the box (as noted)
After installation, confirm sag and damping settings are matched to rider load and usage

SKU	KA610
Model #	S36PC1
Barcode #	KA610
Brand	Ohlins
Shipping Weight	5.0000kg
Shipping Size	0.300 x 0.300 x 0.500m
Type	Units

See our Shipping Information See our Frequently Asked Questions

Position (Front or Rear)	Rear Mono
Shock Length Eye to Eye (mm)	239.0
Spring Rate Standard	145.0 N/mm
Type Code	S36PC1
Stroke Metal to Metal (mm)	40.0
Product Family	STX 36 Scooter
Notes	Comes fitted with 145N/mm spring. Optional 160N/mm included in the box.
Fitted Spring:	60281-23
Spring Colour	Yellow
