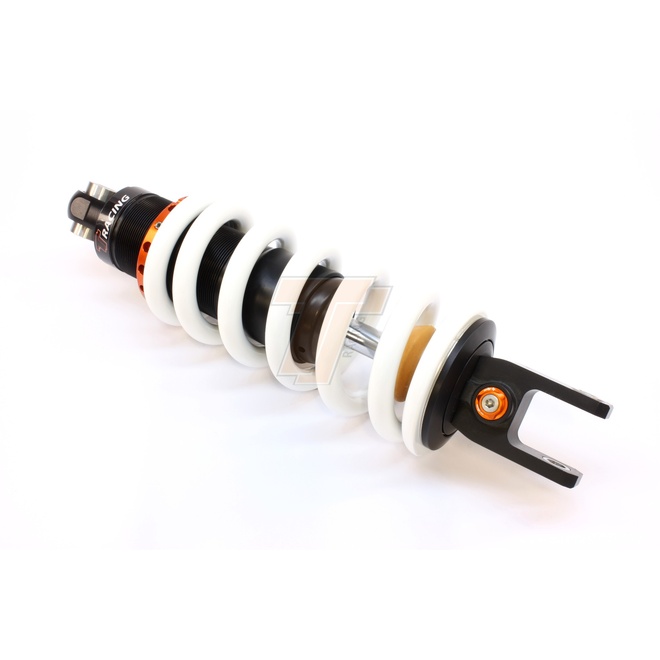

The Tractive X-CITE shock for the Husqvarna TR650 Terra is a closed, pressurised rear shock designed with a separated gas and oil layout to keep damping consistent over long rides. This architecture helps reduce aeration compared with non-pressurised designs, supporting predictable control as conditions change. It is built as a direct-fit replacement unit for the TR650 Terra.
Design & features
- Closed, pressurised shock design with separated gas and oil
- Piston-separated reservoir layout to help maintain stable damping performance
- Supplied with a spring fitted
Tuning Controls
- Rebound damping adjustment
Base Setup (factory preset)
The shock is supplied with a factory baseline tune intended as a starting point. Fine-tuning is done via the rebound adjuster to suit load, tyres, and riding conditions.
Before You Install
- Confirm the shock matches your exact TR650 Terra fitment before installation
- Set sag and preload to suit rider weight and typical luggage/passenger use
- After installation, re-check fasteners and clearances through full suspension travel
Serviceability/Lifecycle
This shock is built to be serviceable. Periodic servicing helps maintain damping quality and seals, particularly for frequent off-road use or high kilometre riding.
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 46HQ13-R3103-TR |
| Model # | 46HQ13-R3103-TR |
| Barcode # | 46HQ13R3103TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | X-CITE |
| Format | Rear |
If your Motorcycle is listed below, this product will suit:
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Rebound |
| Seat Height Change (mm) | Standard Height |
| Shock Length Eye to Eye (mm) | 342.0 |
| Spring Rate Standard | 110 N/mm |
| Spring Option -2 | 95-205 |
| Spring Option +1 | 120-205 |
| Spring Option -1 | 100-205 |
| Spring Option +2 | 130-205 |
| Damping System | Separated oil/gas |
| Rebound Adjuster Position | 8 |
| Spring Preload Setting | 17 |
| Preload Adjustment | Mechanical |
| Spring Type | Linear, included |
| Piston Diameter (mm) | 46 |
| Suspension Unit Type | Shock |
| Fitted Spring | 110-205 |
| Stroke Metal to Metal (mm) | 78.0 |
| Type Code | X-CITE |
