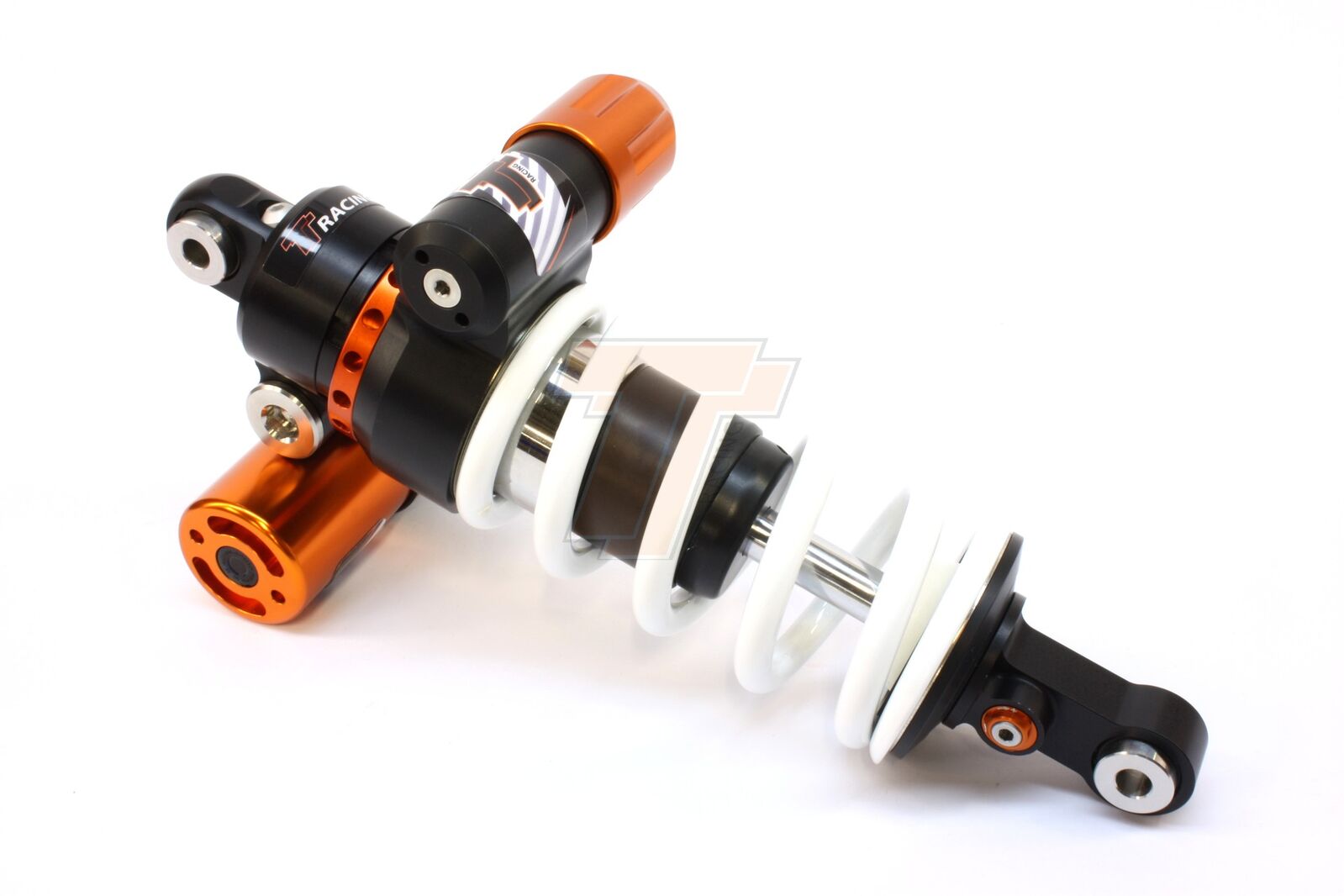

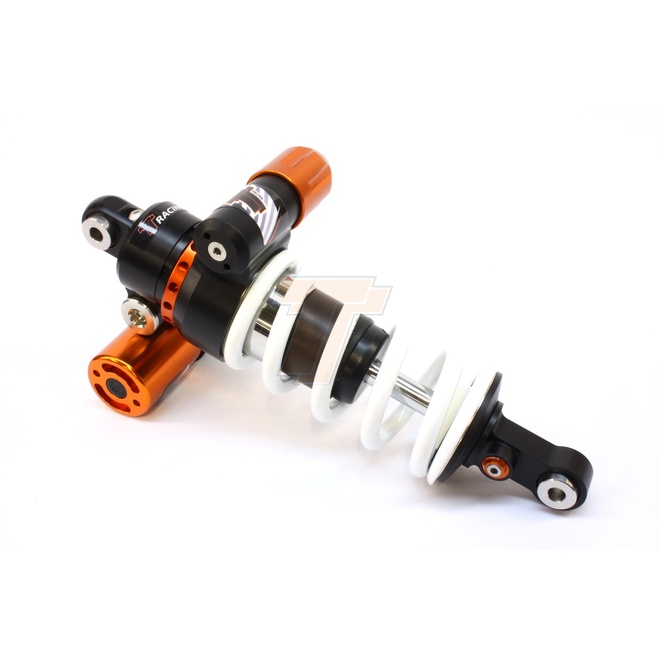

The TracTive X-TREME rear shock for the KTM 790 ADVENTURE (S) is a 46 mm, closed and pressurised unit designed around a separated oil and gas layout for consistent damping. It uses a remote reservoir and includes a spring with a fixed hydraulic preload adjuster. This model provides triple damping adjustment for tuning across a wide range of riding conditions.
Design & features
- Closed, pressurised shock design for stable, consistent damping behaviour
- Oil and gas separated by an internal separation piston
- Remote reservoir connected by hose to manage oil volume and temperature control
- Supplied with spring
- Fixed hydraulic preload adjuster for convenient preload changes
Tuning Controls
- Rebound damping adjustment
- Compression damping adjustment
- Separate high- and low-speed compression adjustment (triple-adjustable configuration)
- Spring preload adjustment via hydraulic preload adjuster
Who is this for?
- Riders who want broader adjustability to set up the bike for changing loads and terrain
- Owners who prefer a pressurised, separated-gas shock architecture for consistent response
- Those looking for a remote-reservoir rear shock solution for the KTM 790 ADVENTURE (S)
Before You Install
- Confirm the exact model fitment for KTM 790 ADVENTURE (S) before installation
- Plan access and routing for the hose-mounted reservoir
- Set sag and preload after installation to suit rider weight and intended load
Serviceability/Lifecycle
- Pressurised, separated-gas shocks are designed to be serviceable with periodic maintenance to keep damping consistent
- Maintain cleanliness around adjusters and preload hardware to preserve sealing surfaces and function
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
 When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 46KT19-T9325-TR |
| Model # | Active Feb 2025 |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | X-TREME + HPA |
If your Motorcycle is listed below, this product will suit:
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Rebound & Compression High + Low Speed |
| Shock Options - Hydraulic Preload Adjuster | Hydraulic with knob |
| Seat Height Change (mm) | Standard Height |
| Shock Length Eye to Eye (mm) | 365.0 |
| Type Code | X-TREME |
| Stroke Metal to Metal (mm) | 76.0 |
