Tractive X-TREME Shock KTM 950 ADVENTURE S
Rear | Raised +30mm(SKU: 46KT06-T5508-TR)
$2,906.20
Find your Bike:

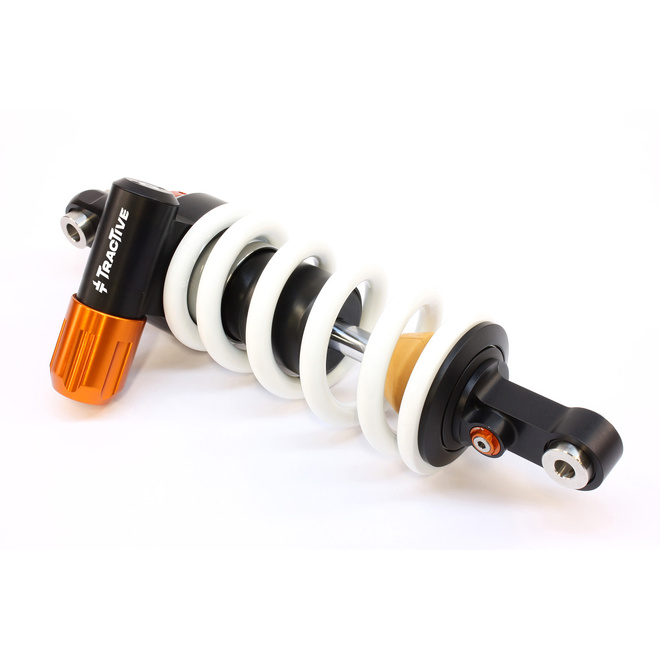

The Tractive X-CITE shock for the KTM 790 ADVENTURE R is a closed, pressurised monotube design with a separation piston to keep oil and gas separated for consistent damping. It is built around a sealed internal architecture designed to maintain control as conditions change. Rebound damping is externally adjustable.
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
When a claim is made under the warranty, the following conditions have to be met:
| SKU | 46KT19-R3332-TR |
| Model # | 46KT19-R3332-TR |
| Barcode # | 46KT19R3332TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | X-CITE |
| Format | Rear |
If your Motorcycle is listed below, this product will suit:
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Rebound |
| Shock Options - Hydraulic Preload Adjuster | Hydraulic with knob |
| Seat Height Change (mm) | Lowered -30 |
| Shock Length Eye to Eye (mm) | 370.0 |
| Spring Rate Standard | 95 N/mm |
| Spring Option -2 | 85-180 |
| Spring Option +1 | 100-180 |
| Spring Option -1 | 90-180 |
| Spring Option +2 | 110-180 |
| Manufacturer Note 1 | Side and/or center stand might be too long |
| Damping System | Separated oil/gas |
| Rebound Adjuster Position | 10 (270 deg) |
| Spring Preload Setting | 15 +12/-3 |
| Preload Adjustment | Hydraulic, with knob |
| Spring Type | Linear, included |
| Piston Diameter (mm) | 46 |
| Suspension Unit Type | Shock |
| Fitted Spring | 95-180 |
| Stroke Metal to Metal (mm) | 81.0 |
| Type Code | X-CITE |
