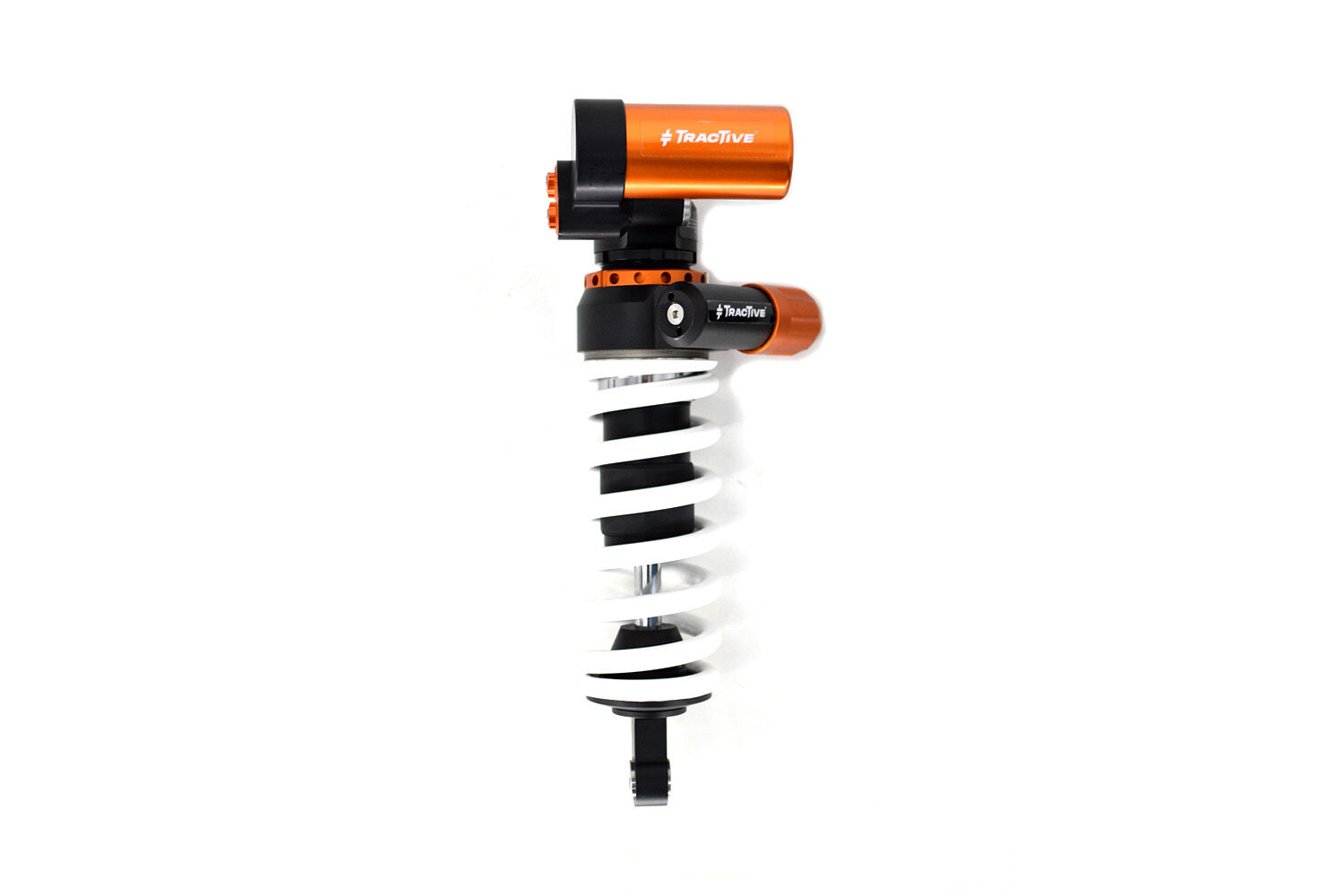

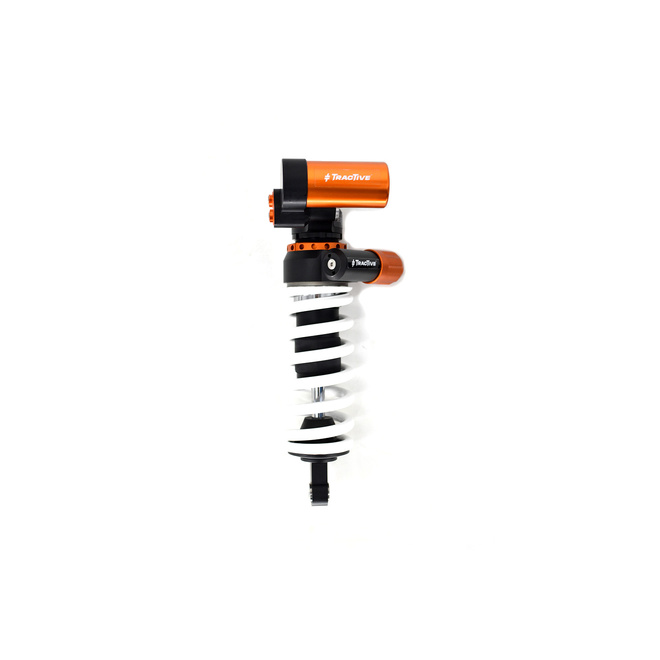

The TracTive X-TREME rear shock for the Husqvarna Norden 901 Expedition is built around a closed, pressurised damper design to keep damping consistent over long rides and rough surfaces. This version changes ride height by lowering the rear by 30 mm. The sealed, oil/gas-separated architecture helps reduce aeration and fade compared with open designs.

Design & features

  • Closed, pressurised damper for stable performance as conditions and temperatures change
  • Oil and gas are separated internally to help maintain consistent damping
  • Lowered configuration: rear ride height reduced by 30 mm

Tuning Controls

  • Triple-adjustable damping (separate compression and rebound adjustments with an additional damping adjustment channel)
  • Remote hydraulic preload adjuster for tool-free spring preload changes

Base Setup (factory preset)

This shock is supplied with a baseline tune intended to suit general road and mixed-surface use. Fine-tuning is done via the external damping adjusters and the hydraulic preload adjuster to match load, tyres, and riding conditions.

Before You Install

  • Confirm the 30 mm lowered ride height suits your intended ground clearance and suspension travel requirements.
  • Set sag and preload for your normal load (rider, luggage, passenger) before making damping changes.
  • After installation, re-check fasteners and settings following your initial shakedown ride.

Serviceability/Lifecycle

As a sealed, pressurised shock, performance depends on oil condition, seals, and gas pressure over time. Periodic servicing helps maintain damping consistency and reliability, especially with frequent off-road use.

Is It Right For You?

This option suits riders who want a premium, highly tuneable rear shock with a lowered stance for the Norden 901 Expedition. If you routinely ride in rocky terrain or prioritise maximum clearance, consider whether the 30 mm reduction aligns with your use.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46KT19-T5332-TR-02
Model # 46KT19-T5332-TR-02
Barcode # 46KT19T5332TR02
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Shock Length Eye to Eye (mm) 370
Length Change (mm) Lowered -30mm
Spring Rate Standard 95 N/mm
Type Code X-TREME
Stroke Metal to Metal (mm) 81
Notes PDSII anti-bottoming
Fitted Spring 95-180
