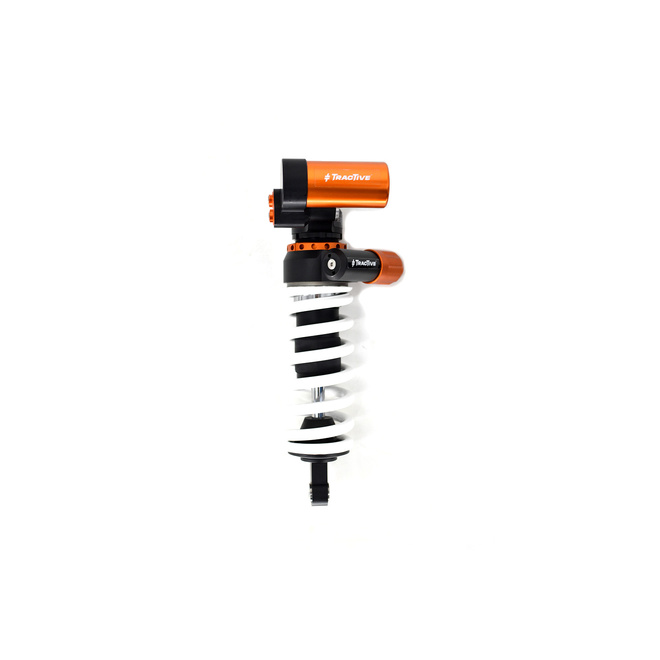

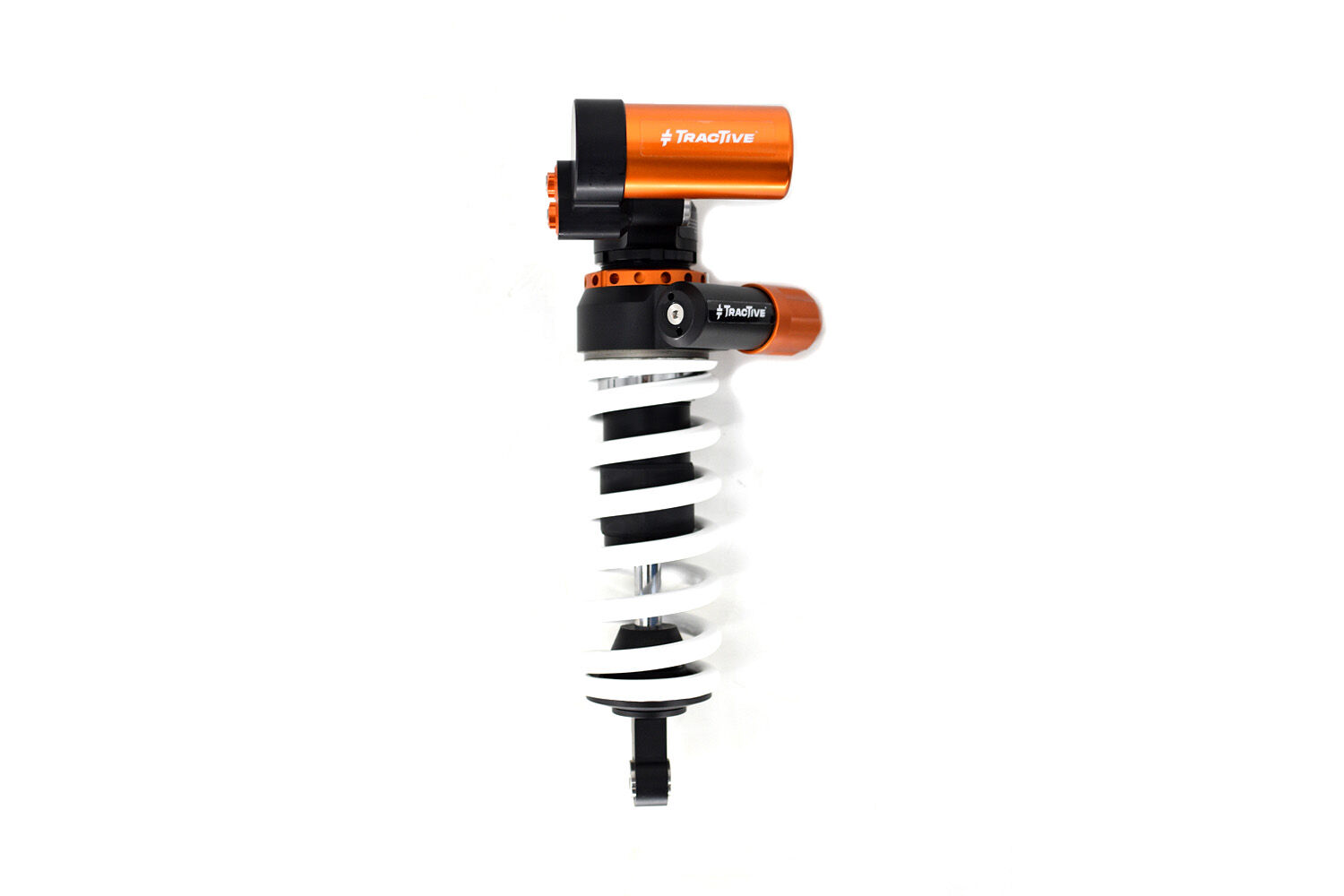

The Tractive X-TREME rear shock for the KTM 790 ADVENTURE (S) is a 46 mm shock built around a closed, pressurised damping system with oil and gas separated by an internal piston. This architecture helps maintain consistent damping and reduces aeration under sustained use. It is supplied in a +15 mm raised length configuration.

Design & features

  • Closed, pressurised shock body with internal oil/gas separation piston for stable damping.
  • Remote reservoir via hose.
  • Spring preload is adjustable via a hose-mounted hydraulic preload adjuster.

Tuning Controls

  • Triple adjustability: independent rebound and compression tuning with an additional compression circuit.
  • Adjusters are located on the shock and reservoir for practical access depending on installation layout.

Who is this for?

  • Riders wanting broader external damping adjustment for mixed-surface riding and load changes.
  • Owners who value consistent damping from a pressurised, separated oil/gas design during extended riding.
  • Those who want a raised rear ride height (+15 mm) to alter chassis attitude.

Before You Install

  • Confirm the +15 mm ride height change suits your intended handling balance and setup.
  • Check clearance and routing for the hose reservoir and the hose-mounted hydraulic preload adjuster.
  • Set sag and baseline damping after installation before making single-change tuning adjustments.

Serviceability/Lifecycle

  • Pressurised, separated oil/gas construction is designed for consistent performance when serviced at appropriate intervals.
  • Plan routine maintenance to keep damping behaviour predictable over time.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46KT19-T5332-TR-03
Model # 46KT19-T5332-TR-03
Barcode # 46KT19T5332TR03
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME
Format Rear
See our Shipping Information See our Frequently Asked Questions

If your Motorcycle is listed below, this product will suit:

Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Seat Height Change (mm) Raised +15
Shock Length Eye to Eye (mm) 370
Length Change (mm) Raised +15mm
Spring Rate Standard 110 N/mm
Spring Option -2 95-180
Spring Option +1 120-180
Spring Option -1 100-180
Spring Option +2 130-180
Damping Feature PDSII anti-bottoming
Damping System Separated oil/gas with reservoir
Rebound Adjuster Position 10 (0 deg)
Low-speed Compression Adjuster Position 12
High-speed Compression Adjuster Position 10
Spring Preload Setting 15 +12/-3
Preload Adjustment Hydraulic, with knob
Spring Type Linear, included
Piston Diameter (mm) 46
Suspension Unit Type Shock
Fitted Spring 110-180
Notes PDSII anti-bottoming
Stroke Metal to Metal (mm) 81
Type Code X-TREME
