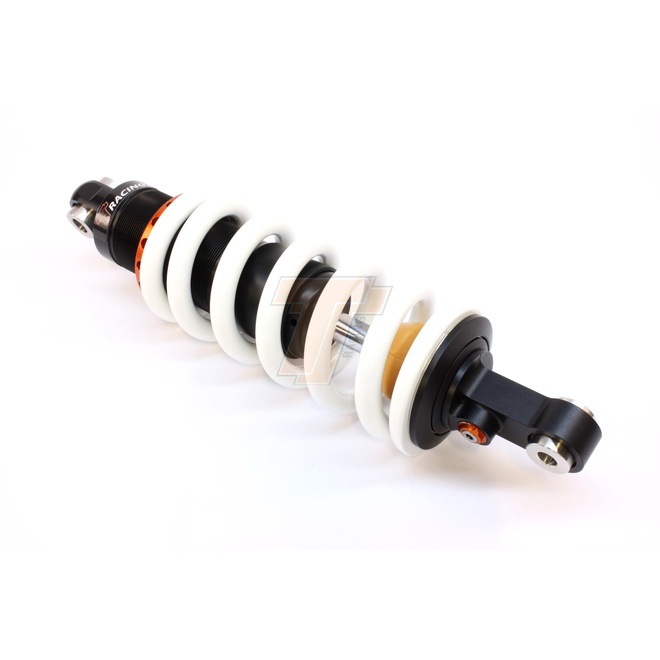

The Tractive X-CITE Shock for Yamaha TDM 850 is a closed, pressurised rear shock built around a sealed cartridge design to keep damping consistent and reduce aeration. This unit is configured with external rebound damping adjustment to let you fine-tune feel without disassembly. The oil and gas are separated internally to support stable performance over varying conditions.

Design & features

  • Closed, pressurised shock with a sealed cartridge architecture
  • Oil/gas separation piston design (not an emulsion shock)
  • Coil spring fitted

Tuning Controls

  • Rebound damping adjustment

Base Setup (factory preset)

The shock is supplied with a baseline internal valving setup intended as a general-purpose starting point. Use the external rebound adjuster to tailor response to load, tyres, and road conditions.

Before You Install

  • Confirm correct fitment for your exact Yamaha TDM 850 variant and build year before installation.
  • Inspect linkage bearings and mounting hardware condition, as worn components can mask suspension changes.

Serviceability/Lifecycle

As a sealed, pressurised design with separated oil and gas, the shock is suited to routine servicing to maintain damping quality over time. Service intervals and procedures should follow Tractive guidance and usage conditions.

Is It Right For You?

Choose this configuration if you want a rear shock with a robust pressurised architecture and the ability to adjust rebound damping. If you specifically need external compression adjustment or electronic control, this shock is not configured with those features.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46YA96-R1102-TR
Model # 46YA96-R1102-TR
Barcode # 46YA96R1102TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-CITE
Format Rear
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound
Seat Height Change (mm) Standard Height
Spring Rate Standard 220.0 N/mm
Type Code X-CITE
Fitted Spring 220-160
Suspension Unit Type Shock
Piston Diameter (mm) 46
Spring Type Linear, included
Preload Adjustment Mechanical
Damping System Emulsion oil/gas
Spring Option +2 240-160
Spring Option -1 190-160
Spring Option +1 220-160
Spring Option -2 180-160
