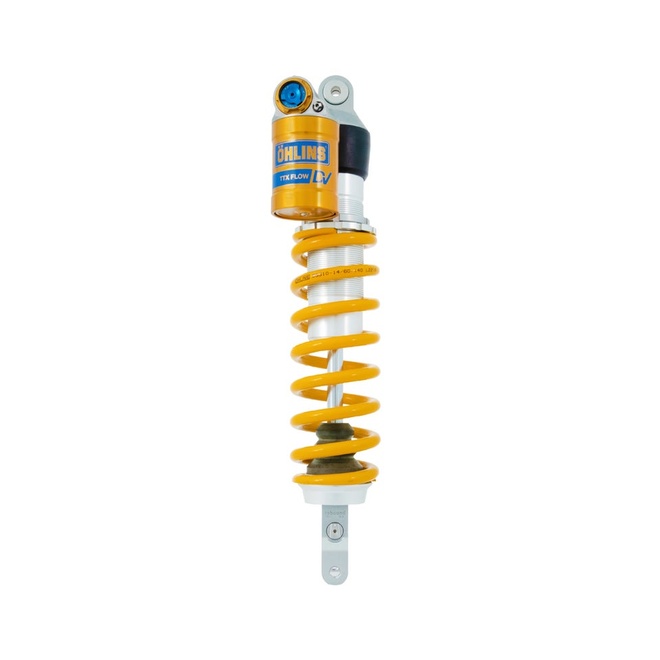

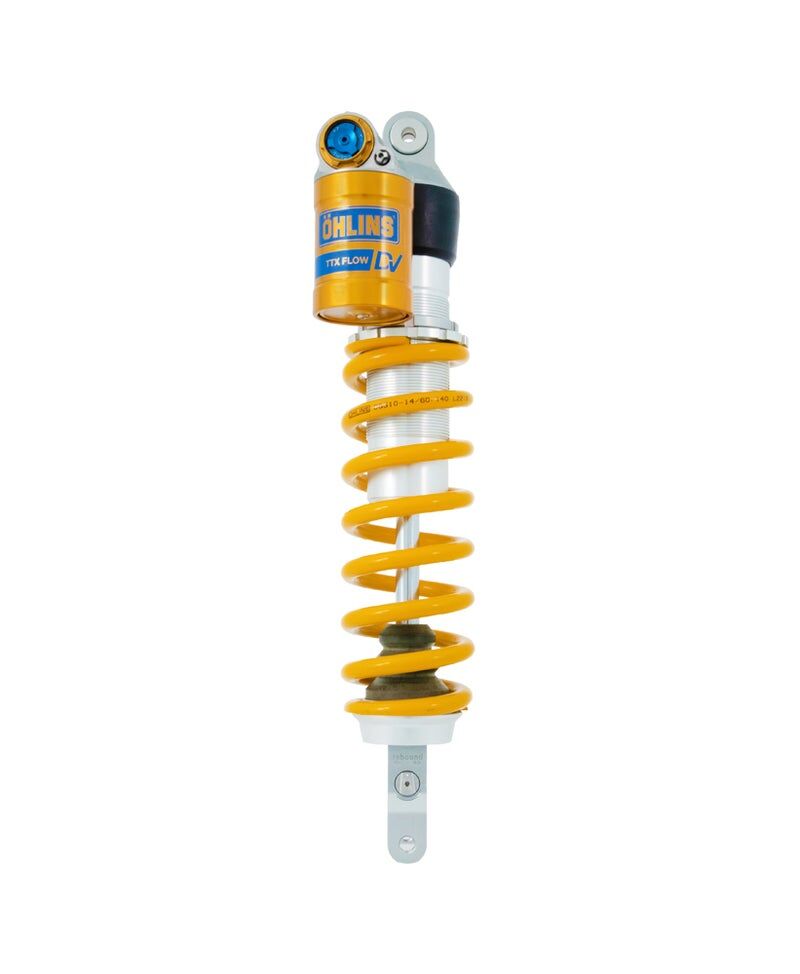

The Ohlins TTX Flow DV rear shock for Kawasaki KX 250F is built around Ohlins’ twin-tube damping architecture to deliver consistent control across changing track conditions. The design focuses on stable damping behaviour under repeated impacts and long motos. This unit is supplied without a spring, allowing spring selection to suit rider weight and intended use.

Ohlins | Made to race, perfected to ride

Developed from Ohlins competition suspension knowledge, this rear mono shock is intended to provide a controlled and predictable rear end feel. The TTX layout is designed to keep damping performance consistent through heat and high workload use.

Who this shock is for

  • Kawasaki KX 250F riders chasing improved rear traction, balance and bump control
  • Motocross and enduro riders who want a tunable setup for different tracks and conditions
  • Owners who prefer selecting the correct spring separately rather than using a one-size option

Shock design & features

This is an oil/gas separated shock design (not an emulsion type), aimed at maintaining damping consistency when ridden hard. The twin-tube architecture helps manage oil flow in a controlled way to support stable damping characteristics over a wide operating range.

Tuning controls

The shock includes external adjustment for rebound damping, plus two separate compression damping adjusters (high-speed and low-speed). These controls allow you to tune how the rear responds to sharp hits versus chassis movements such as acceleration squat and weight transfer.

Before you install

  • Spring is not supplied; select the appropriate spring series as noted for this shock
  • Confirm fitment to your exact KX 250F model/year and any linkage or chassis changes
  • Set sag and baseline adjusters after installation to establish a stable starting point

Serviceability/lifecycle

Like all performance shocks, regular servicing helps maintain damping consistency and seal reliability. Use the recommended Ohlins oil noted for this unit and service at intervals appropriate to riding conditions and hours.

SKU DMX0223
Model # T46PR1C2W
Barcode # DMX0223
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.300 x 0.300 x 0.500m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear Mono
Shock Length Eye to Eye (mm) 485.0
Spring Rate No Spring/s Supplied
Type Code T46PR1C2W
Stroke Metal to Metal (mm) 142.0
Product Family TTX Flow DV
Notes 06310- & 06451- spring series. Preload adjuster 15000-02 fits this shock. *Replaces KA 2193*
Fitted Spring: Sold separately, see notes.
Rec. Ohlins Oil 01304-
