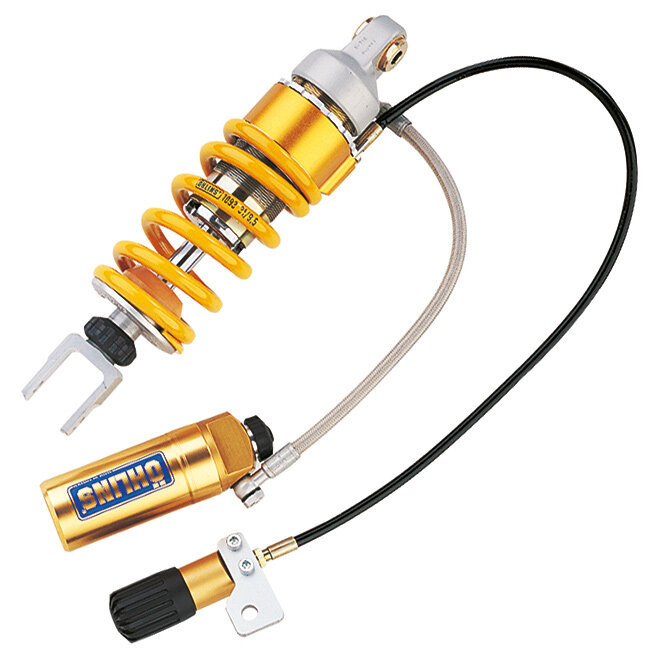

The Ohlins STX 46 Street rear shock for the Honda CBR1100XX is built to improve chassis control and damping consistency for road use. It uses a pressurised, separated oil/gas design to help maintain stable damping under sustained load and temperature. Valving and springing are supplied to suit the application, with adjustment to refine feel and balance.

Ohlins | Made to race, perfected to ride

Developed from Ohlins motorcycle suspension architecture, this unit targets predictable feedback and controlled compliance across real-world surfaces. It is designed as a direct-fit rear replacement for the model listed.

Shock design & features

  • STX 46 Street rear mono shock architecture
  • Pressurised design with separated oil/gas to support consistent damping
  • Application-specific valving and fitted spring supplied

Tuning controls

  • Rebound damping adjustment
  • Compression damping adjustment
  • Spring preload adjustment

Base setup (factory preset)

The shock is delivered with an Ohlins baseline setup intended to suit the standard bike and typical street riding. Fine-tuning is then used to match rider load, tyres, and preferred balance.

Before you install

  • Confirm the shock is matched to your exact Honda CBR1100XX model and year
  • Set sag and preload for your rider weight and typical luggage/passenger use
  • After installation, re-check fasteners and clearance through full suspension travel

Serviceability/lifecycle

As an Ohlins serviceable unit, oil and wear parts can be refreshed to keep damping performance consistent over time. Periodic servicing is recommended, especially with frequent riding or harsh conditions.

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU HO207
Model # S46HR1C1S
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.300 x 0.300 x 0.500m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear Mono
Shock Length Eye to Eye (mm) 319.0
Spring Rate Standard 170.0 N/mm
Type Code S46HR1C1S
Stroke Metal to Metal (mm) 52.0
Product Family STX 46 Street
Fitted Spring 01092-69
Spring Colour Yellow
Rec. Ohlins Oil 01309-
