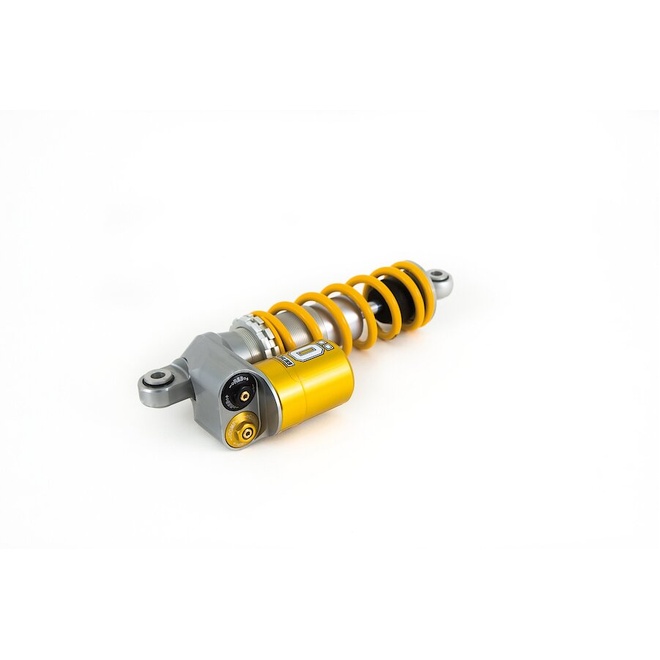

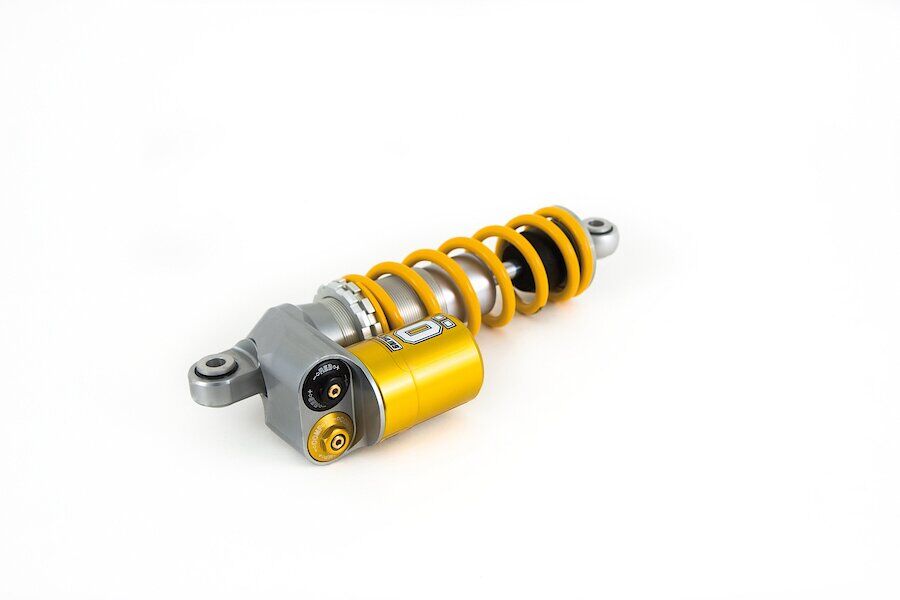

The Ohlins KT1690 is a rear STX 46 MX shock absorber application for the KTM 85 SX. Built around a pressurised, separated oil/gas damping design, it’s intended to deliver consistent control across changing track conditions. Spring supply and selection are handled separately, so the correct spring must be chosen for rider weight and use.

Ohlins | Made to race, perfected to ride

STX 46 MX units are developed with Ohlins off-road racing experience and are designed for repeatable damping behaviour and clear feedback at the rear wheel. The pressurised architecture helps maintain damping consistency as temperatures and pace vary.

Shock design & features

  • Rear mono-shock configuration for KTM 85 SX fitment
  • Pressurised, oil/gas separated damping design
  • STX 46 MX platform aimed at stable chassis behaviour and traction management

Tuning controls

This shock includes external adjustment for rebound damping and compression damping, giving you scope to balance rear grip, squat and stability to suit track conditions and rider preference.

Before you install

No spring is supplied with this unit. It requires a 00698-series spring, selected to suit the rider and intended use. Confirm spring choice and any required setup work before installation.

Serviceability/lifecycle

As a pressurised performance shock, it benefits from regular servicing to keep oil condition, sealing and damping performance consistent. Use the recommended Ohlins oil grade specified for this model during rebuilds.

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU KT1690
Model # S46PR1C2Q1W
Barcode # KT1690
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.300 x 0.300 x 0.500m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear Mono
Shock Length Eye to Eye (mm) 397.0
Spring Rate No Spring/s Supplied
Type Code S46PR1C2Q1W
Product Family STX 46 MX
Notes 00698-series spring
Fitted Spring Sold separately, see notes.
Rec. Ohlins Oil 01304-
