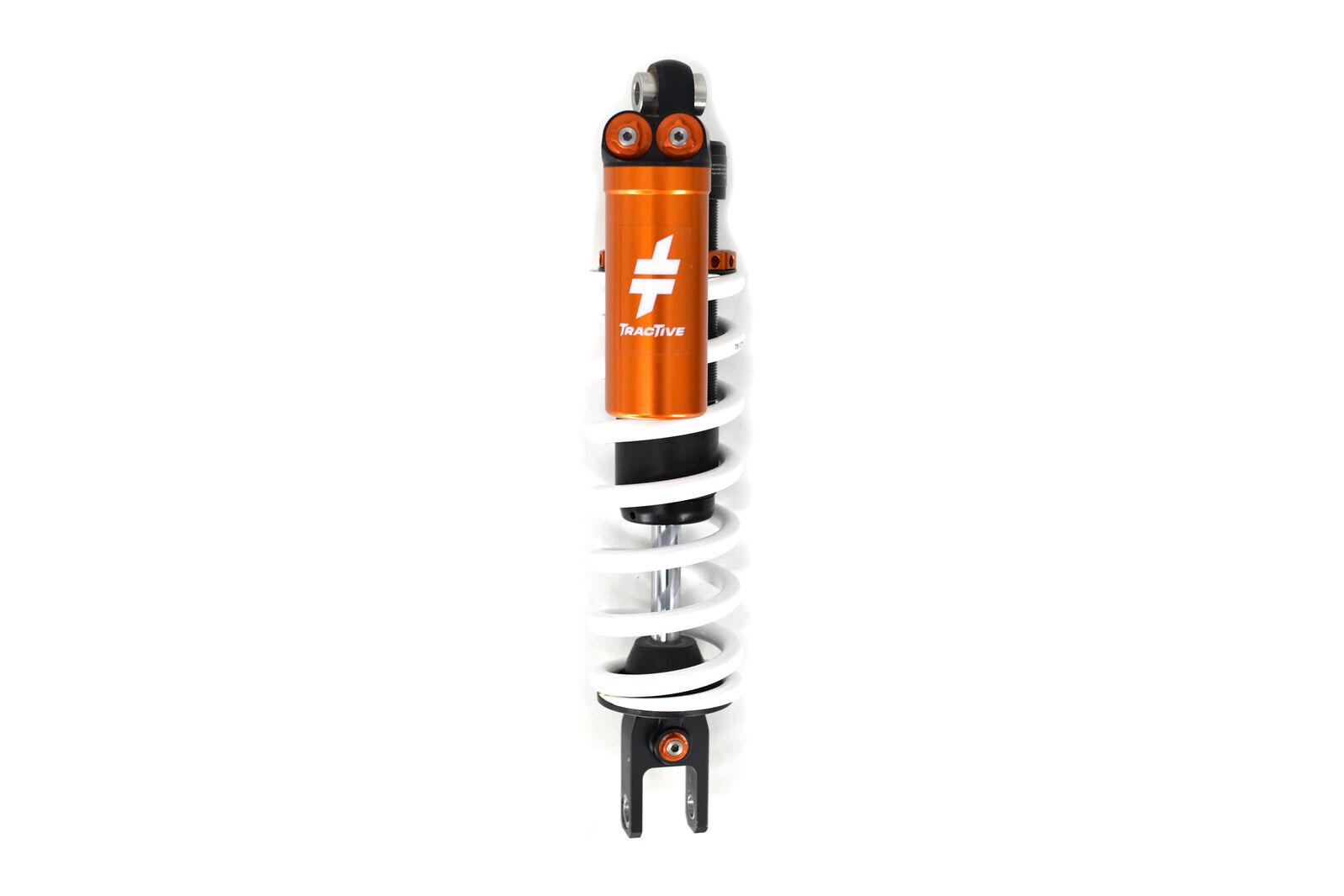

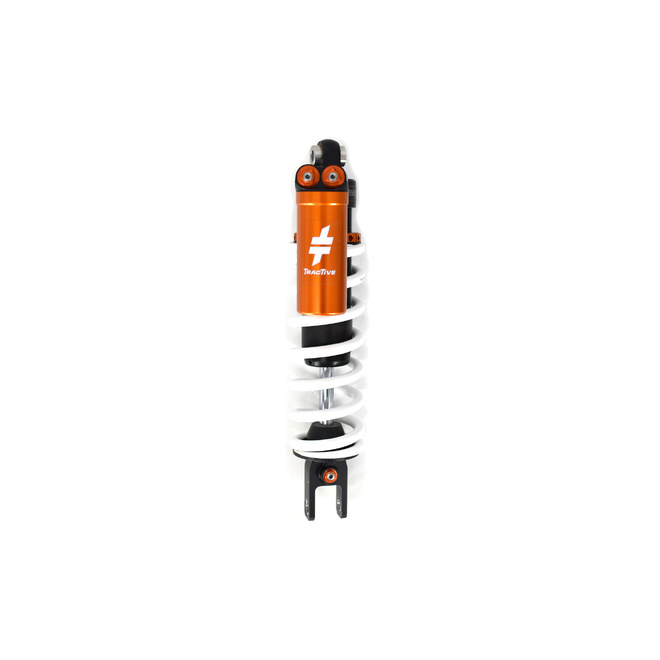

The Tractive X-TREME shock for the Yamaha Tenere 700 is a closed, pressurised rear shock that uses a sealed cartridge architecture for consistent damping under changing conditions. This variant is lowered by 20 mm, changing the rear ride height accordingly. It is configured with separate compression and rebound damping adjustment along with spring preload adjustment.

Design & features

  • Closed, pressurised shock design to help maintain damping consistency and reduce aeration.
  • Sealed cartridge architecture for controlled oil flow and stable performance.
  • Lowered configuration (20 mm) to reduce rear ride height.

Tuning Controls

  • Rebound damping adjustment
  • Compression damping adjustment
  • Spring preload adjustment

Who is this for?

  • Riders who want a lowered rear ride height on the Tenere 700.
  • Owners who prefer being able to tune both compression and rebound damping.

Before You Install

  • Confirm the lowered ride-height change suits your intended use and setup.
  • Ensure you have clearance and geometry considerations covered when reducing rear ride height.

Serviceability/Lifecycle

  • Built around a sealed, pressurised layout intended for consistent damping and routine servicing when required.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46YA25-T5143-TR
Model # 46YA25-T5143-TR
Barcode # 46YA25T5143TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME
See our Shipping Information See our Frequently Asked Questions

If your Motorcycle is listed below, this product will suit:

Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Length Eye to Eye (mm) 380
Length Change (mm) Lowered -20mm
Spring Rate Standard 70 N/mm
Type Code X-TREME
Stroke Metal to Metal (mm) 97
Notes PDSII anti-bottoming
Fitted Spring 70-220
