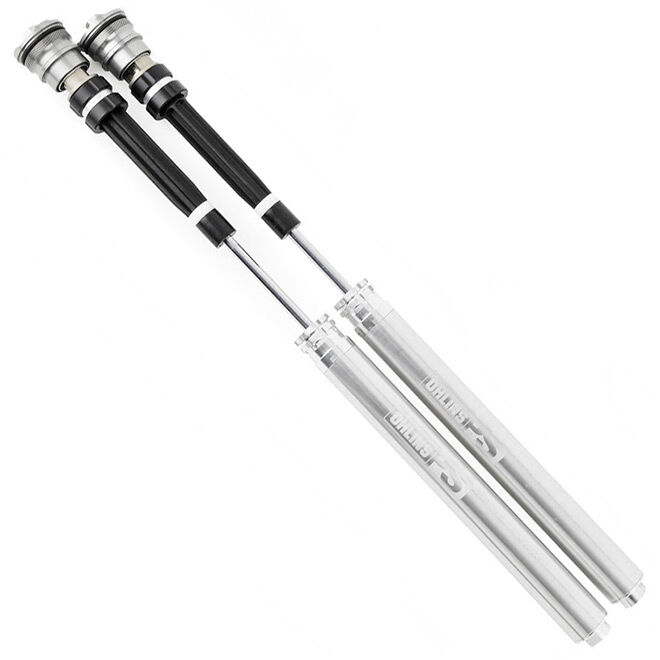

The Ohlins FKR103 FKR 100 fork cartridge front is designed for the Yamaha YZF R1M, focusing on refined front-end control and consistent damping feel. It is built to improve stability under braking and support clear feedback through the corner. Adjustment is straightforward, allowing you to tune the front end to suit your riding conditions.

Ohlins | Made to race, perfected to ride

Developed as a high-performance internal fork upgrade, this cartridge kit is aimed at riders wanting a more composed and communicative front end without changing the overall character of the bike.

Who this cartridge kit is for

  • Yamaha YZF R1M riders chasing improved front-end confidence and feel
  • Spirited street riders who want better braking stability
  • Riders doing occasional track use and looking for more precise damping control

Shock design & features

  • Fork cartridge front design intended to enhance front-end feedback
  • Premium internal components to support consistent performance and durability
  • Designed to deliver a composed, predictable front-end response

Tuning controls

  • Separate compression damping adjustment
  • Separate rebound damping adjustment
  • Intended to make tuning clear and repeatable for road and track environments

Before you install

  • Confirm fitment for your Yamaha YZF R1M before installation
  • Plan for correct installation and setup so adjustments work as intended
  • After installation, set damping adjusters to a sensible baseline and tune methodically

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU FKR103
Model # TTX25S
Barcode # FKR103
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.800m
Type Units
See our Shipping Information See our Frequently Asked Questions

If your Motorcycle is listed below, this product will suit:

Position (Front or Rear) Front cartridge
Type Code TTX25S
Stroke Metal to Metal (mm) 120.0
Product Family FKR 100
Notes Comes with 3 different spring rates: 9.5 ,10 & 10.5N/mm Fits OEM Öhlins FL 912 fork *Replaces FGR 184*
Fitted Spring Sold separately. See notes.
Rec. Ohlins Oil 01309-
