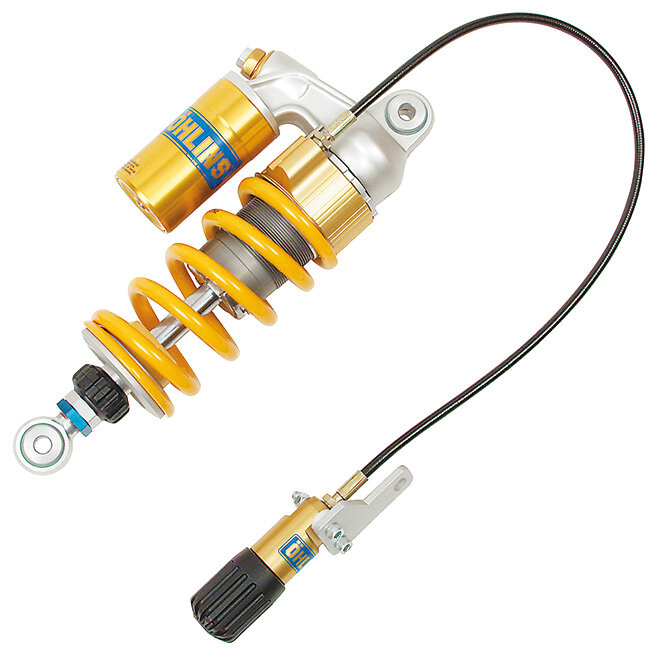

The Ohlins STX 46 Supersport rear shock for Yamaha YZF R1 is engineered to deliver controlled damping behaviour and consistent feel across a wide range of riding conditions. Built around Ohlins race-derived architecture, it focuses on maintaining tyre contact and chassis stability under acceleration, braking and cornering. This unit uses a gas-pressurised, oil/gas separated design to help maintain damping consistency during sustained hard use.

Ohlins | Made to race, perfected to ride

Developed from Ohlins supersport programs, the STX 46 platform is intended for riders who want clearer feedback and more tunable rear-end control than a standard shock. It suits track-focused riding as well as performance road use where stability and traction matter.

Shock design & features

• STX 46 Supersport architecture designed for precise damping control and stable chassis response
• Gas-pressurised, oil/gas separated configuration for consistent performance
• Rear mono-shock fitment for Yamaha YZF R1 applications

Tuning controls

• Rebound damping adjustment to control return speed after bumps and load changes
• Compression damping adjustment to manage support under braking and acceleration
• Length adjustment to help fine-tune rear ride height and chassis balance

Base setup (factory preset)

This shock is supplied with an Ohlins baseline setting intended to work as a starting point for the standard fitment. Final setup should be refined for rider weight, tyres and intended use, with changes made methodically to isolate the effect of each adjustment.

Before you install

• Confirm clearance and routing around the shock body and reservoir area before tightening hardware
• Set sag and check linkage condition, as worn bearings can mask adjustment changes
• If changing ride height, verify chain slack and handling balance after adjustment

Serviceability/lifecycle

Ohlins shocks are designed to be serviced and reconditioned. Regular servicing helps maintain damping consistency and protects internal components, particularly when used in track conditions or high-heat environments.
