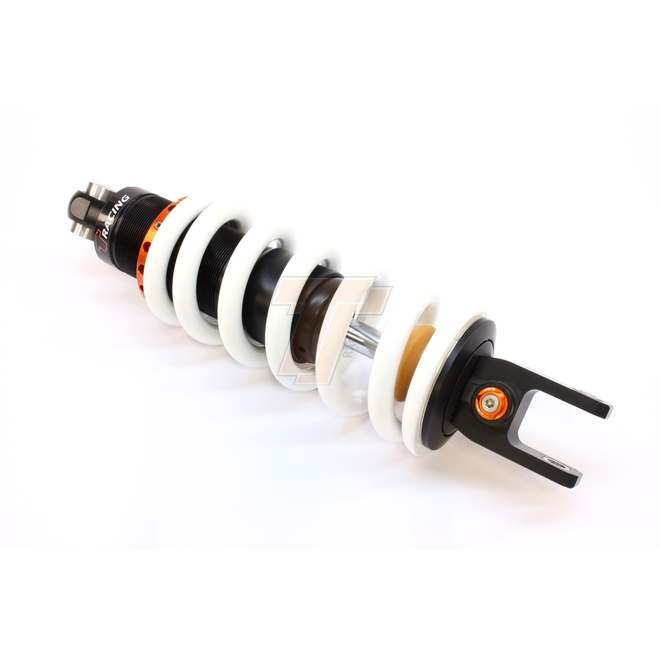

The Tractive X-CITE shock for the Honda XRV750 Africa Twin (RD03/RD04) is a complete rear replacement unit built around a closed, pressurised damper with separated oil and gas. This architecture helps maintain consistent damping and reduces aeration under sustained use. It also includes external rebound adjustment to fine-tune control for load, tyres, and terrain.
Design & features
- Closed, pressurised shock design with separated oil and gas for stable damping behaviour
- Purpose-built fitment for Honda XRV750 Africa Twin (RD03/RD04)
- External rebound adjuster for on-bike tuning
Tuning Controls
- Rebound damping: externally adjustable to manage how quickly the rear returns after bumps and under acceleration
Is It Right For You?
- Riders who want straightforward, usable adjustability without extra complexity
- Owners setting the bike up for different loads such as luggage or a passenger, where rebound control becomes more important
Before You Install
- Confirm your exact model and sub-model (RD03/RD04) before ordering
- Inspect linkage and bearings during installation, as wear elsewhere can mask suspension improvements
Serviceability/Lifecycle
- Designed to be serviced as part of normal suspension maintenance to keep performance consistent over time
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 46HO88-R1120-TR |
| Model # | 46HO88-R1120-TR |
| Barcode # | 46HO88R1120TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | X-CITE |
If your Motorcycle is listed below, this product will suit:
- HONDA XRV750 RD04 (Africa Twin) 1990
- HONDA XRV750 RD04 (Africa Twin) 1991
- HONDA XRV750 RD04 (Africa Twin) 1992
- HONDA XRV750 RD04 (Africa Twin) 1993
- HONDA XRV750 RD04 (Africa Twin) 1994
- HONDA XRV750 RD04 (Africa Twin) 1995
- HONDA XRV750 RD04 (Africa Twin) 1996
- HONDA XRV750 RD04 (Africa Twin) 1997
- HONDA XRV750 RD04 (Africa Twin) 1998
- HONDA XRV750 RD04 (Africa Twin) 1999
- HONDA XRV750 RD04 (Africa Twin) 2000
- HONDA XRV750 RD04 (Africa Twin) 2001
- HONDA XRV750 RD04 (Africa Twin) 2002
- HONDA XRV750 RD04 (Africa Twin) 2003
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Rebound |
| Seat Height Change (mm) | Standard Height |
| Shock Length Eye to Eye (mm) | 373.0 |
| Spring Rate Standard | 130 N/mm |
| Type Code | X-CITE |
| Stroke Metal to Metal (mm) | 89.0 |
| Fitted Spring | 130-205 |
