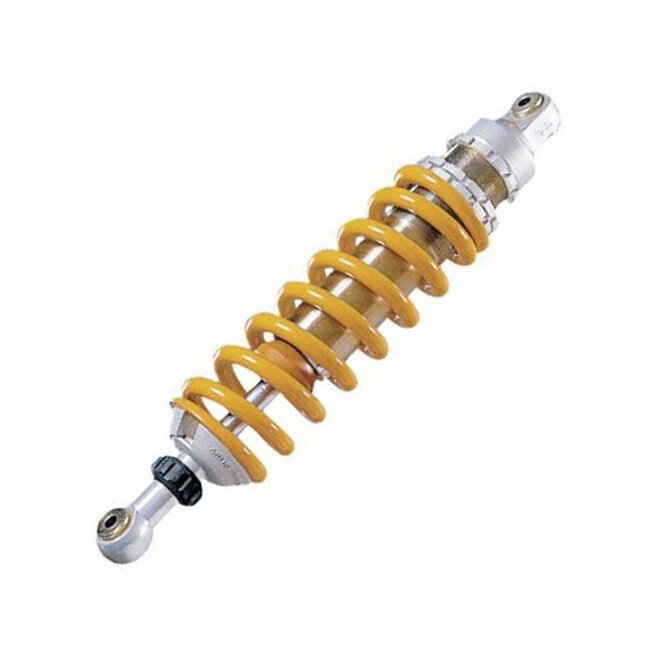

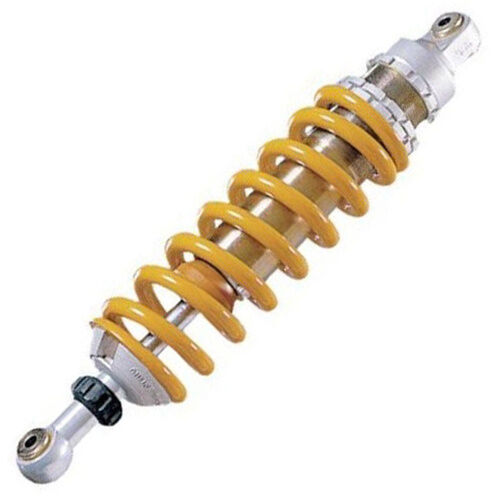

The Ohlins STX 46 Street rear shock for the Honda CB500F, CB500X and CBR500R is built to improve suspension control and consistency for everyday road riding and spirited use. It is a monotube design that uses separated oil and gas to help maintain stable damping behaviour as conditions change. The result is clearer chassis feedback and improved composure through braking, corner entry and acceleration.
Ohlins | Made to race, perfected to ride
Ohlins suspension is developed with a focus on damping accuracy and predictable feel. This unit is tailored for the Honda CB500 platform, offering a more controlled response than a basic OE-style shock while keeping the setup practical for street use.
Shock design & features
- Monotube shock architecture with separated oil and gas for consistent damping
- Street-focused valving aimed at traction, stability and ride control
- Application-specific fitment for the Honda CB500F/CB500X/CBR500R rear mono position
Tuning controls
- Rebound damping adjustment to tune chassis settling and grip on corner exit
- Spring preload adjustment to set ride height balance and suit rider load
Base setup (factory preset)
The shock is supplied with an Ohlins baseline setting intended to work as a starting point for the nominated models. Final settings should be confirmed after checking sag and ensuring the bike is correctly balanced front-to-rear for your rider weight and typical load.
Before you install
- Confirm compatibility with your exact model and version (noted as the naked bike version in the product notes)
- Inspect linkages and bearings during installation and service as required
- After fitment, re-check fasteners and verify smooth suspension movement through full travel
Serviceability/lifecycle
This Ohlins unit is serviceable and intended to be maintained to keep damping performance consistent over time. Periodic servicing helps manage oil condition and internal wear, particularly if the bike sees frequent rough roads or aggressive riding.
Öhlins Motorcycle Suspension Warranty
New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.
Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.
This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.
- Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
- Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
- Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.
Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.
A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.
Warranty repairs
Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.
Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.
Öhlins spare parts and service kits
Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.
No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.
Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.
| SKU | HO320 |
| Model # | S46DR1 |
| Brand | Ohlins |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.300 x 0.300 x 0.500m |
| Type | Units |
| Position (Front or Rear) | Rear Mono |
| Shock Length Eye to Eye (mm) | 307.0 |
| Spring Rate Standard | 110.0 N/mm |
| Type Code | S46DR1 |
| Stroke Metal to Metal (mm) | 54.0 |
| Product Family | STX 46 Street |
| Notes | Naked bike version |
| Fitted Spring | 61093-39 |
| Spring Colour | Yellow |
| Rec. Ohlins Oil | 01309- |
