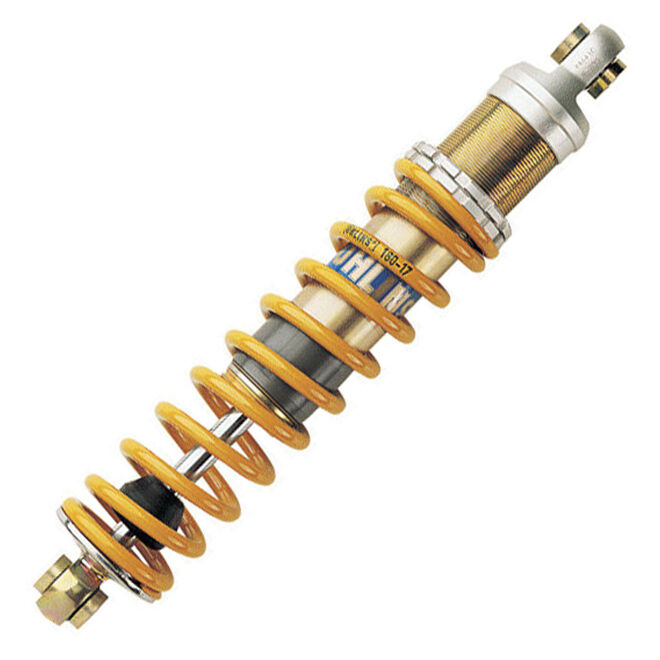

The Ohlins HO513 STX 36 is a rear scooter shock developed for the Honda Ape 50/100, focused on improving chassis control and consistency. It uses a gas-pressurised damping system to help maintain stable performance as conditions and pace change. Damping circuits are designed to deliver clear feedback and predictable grip.

Ohlins | Made to race, perfected to ride

Built around Ohlins suspension know-how, this unit targets better stability, traction and rider confidence through controlled damping and quality internal components.

Who this shock is for

  • Honda Ape 50/100 riders wanting more composure from the rear end
  • Street and spirited riding where traction and stability matter
  • Owners looking for a tuned, purpose-built rear mono shock solution

Shock design & features

  • Gas-pressurised damping to help reduce fade and keep damping consistent
  • STX 36 Scooter platform architecture for compact rear applications
  • Rear mono-shock configuration

Tuning controls

  • Compression damping adjustment
  • Rebound damping adjustment

Before you install

  • Confirm fitment for Honda Ape 50/100 and check clearances around the swingarm and bodywork
  • Set sag and ride height to suit your load and riding style before fine-tuning damping
  • Use appropriate tools and follow workshop procedures for suspension installation

Serviceability/lifecycle

Like all performance suspension, periodic servicing helps keep damping response consistent and protects internal wear components over time.

SKU HO513
Model # S36E
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.300 x 0.300 x 0.500m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear Mono
Shock Length Eye to Eye (mm) 261.0
Spring Rate Standard 160.0 N/mm
Type Code S36E
Stroke Metal to Metal (mm) 38.0
Product Family STX 36 Scooter
Fitted Spring: 00281-38
Spring Colour Yellow
