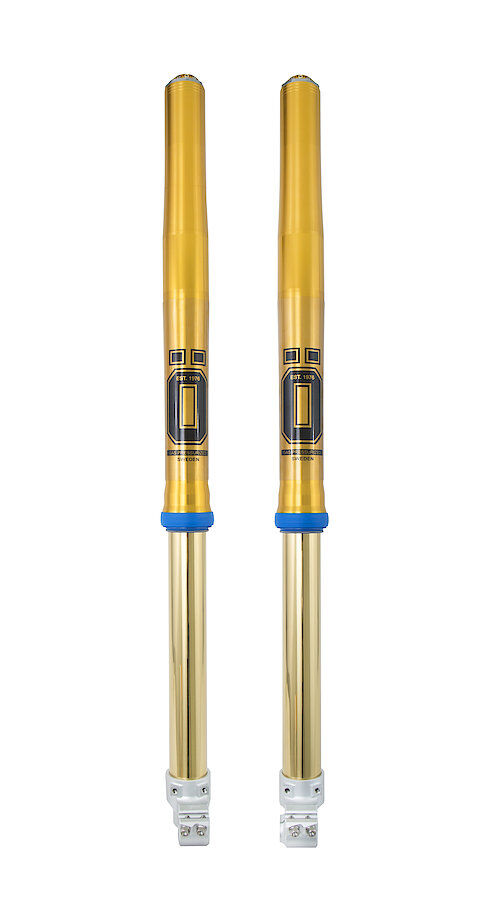

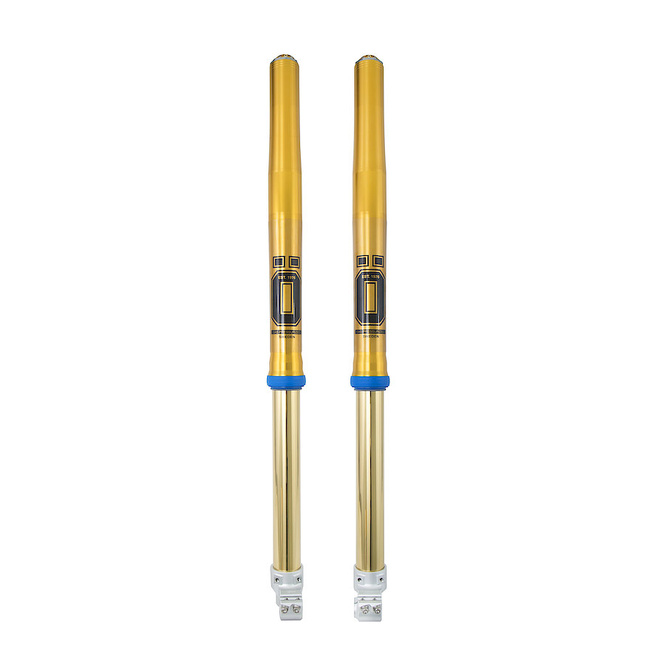

The Ohlins FGKT1693 TTX 22 fork cartridge kit is built to improve front-end control and feel on compatible KTM models. It is designed to deliver more consistent damping response, particularly under braking and through mid-corner loads. The result is a more composed front end that supports confident, repeatable riding.
Ohlins | Made to race, perfected to ride
Ohlins suspension is developed with a focus on damping control, predictability and tunability. The TTX 22 platform is intended to provide stable performance across a range of riding conditions.
Who this kit is for
- Riders chasing clearer front-end feedback and improved stability
- Owners of KTM 125/150 SX and 250/350 SX-F (Europe) looking for a tunable fork damping solution
- Riders who want a more communicative feel through braking and corner entry
Fork cartridge design & features
- TTX 22 fork cartridge kit for the front fork
- Engineered to improve braking stability and mid-corner feel through controlled damping characteristics
- Premium internal components aimed at consistent performance and durability
Tuning controls
- Separate compression adjustment
- Separate rebound adjustment
- Designed to support tailored setup for different conditions and preferences
Before you install
- Confirm model and region compatibility for KTM 125/150 SX and 250/350 SX-F (Europe) before purchase
- Professional installation is recommended to ensure correct assembly and setup
Serviceability/lifecycle
This Ohlins cartridge kit is designed to be serviced to maintain performance over time. Regular inspection and servicing helps keep damping consistent and protects internal components.
Öhlins Motorcycle Suspension Warranty
New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.
Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.
This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.
- Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
- Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
- Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.
Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.
A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.
Warranty repairs
Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.
Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.
Öhlins spare parts and service kits
Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.
No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.
Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.
| SKU | FGKT1693 |
| Model # | TTX Cartridge kit |
| Barcode # | FGKT1693 |
| Brand | Ohlins |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.800m |
| Type | Units |
| Position (Front or Rear) | Front cartridge |
| Spring Rate | No Spring/s Supplied |
| Type Code | T22DR1C1 |
| Stroke Metal to Metal (mm) | 288.0 |
| Product Family | TTX 22 |
| Notes | 08765- series springs |
| Fitted Spring | Sold separately, see notes. |
| Rec. Ohlins Oil | 01330- |
