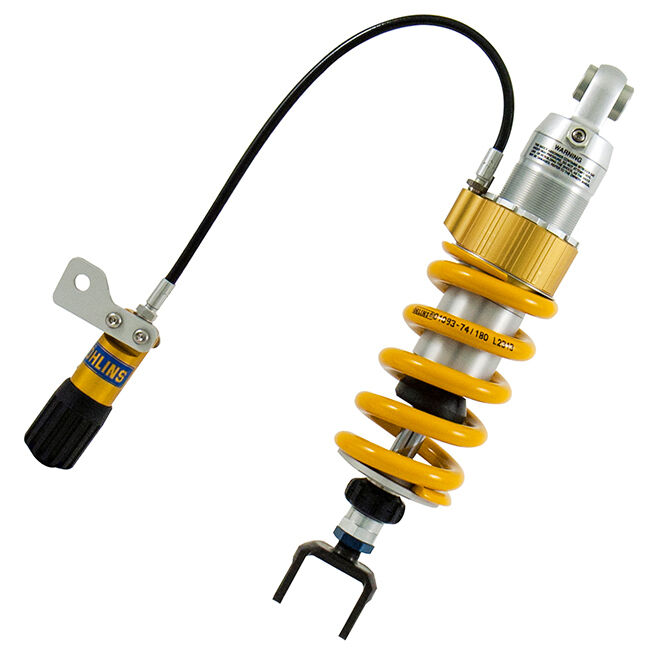

The Ohlins STX 46 Street rear shock is built to give more consistent damping control and a calmer chassis feel for street riding on the Kawasaki VN 2000. It uses a monotube architecture with a separated oil/gas layout to help maintain stability as conditions and load change. The focus is predictable support, traction and ride quality rather than harshness.

Ohlins | Made to race, perfected to ride

Developed from Ohlins suspension know-how, the STX 46 Street range is aimed at real-world road use where grip, comfort and composure all matter. This unit is configured as a rear mono shock application for the VN 2000.

Shock design & features

  • Monotube rear shock design for direct damping response
  • Separated oil/gas configuration to support consistent damping behaviour
  • STX 46 Street family construction intended for street-focused control and stability

Tuning controls

  • Rebound damping adjustment to tune how the shock returns after a bump or weight transfer
  • Spring preload adjustment to suit rider weight, passenger use and luggage

Base setup (factory preset)

This shock is supplied with an Ohlins-fitted spring and a factory baseline damping setting. That base setup is intended to be a solid starting point for normal street riding, with tuning available via the external adjusters to match your load and ride preferences.

Before you install

  • Confirm fitment for your exact VN 2000 variant and model year before installation
  • Set sag/preload first, then fine-tune rebound damping in small steps
  • Inspect mounting hardware and linkage/bush condition during fitment

Serviceability/lifecycle

Like all performance shocks, this unit is designed to be serviced to maintain damping quality over time. Periodic oil and seal service helps keep response consistent, especially if the bike sees frequent riding or heavier loads.

SKU KA762
Model # S46DR1LS
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.300 x 0.300 x 0.500m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear Mono
Shock Length Eye to Eye (mm) 320.5 0/-12
Spring Rate Standard 170.0 N/mm
Type Code S46DR1LS
Stroke Metal to Metal (mm) 33.5
Product Family STX 46 Street
Fitted Spring: 21117-69
Spring Colour Yellow
Rec. Ohlins Oil 01309-
