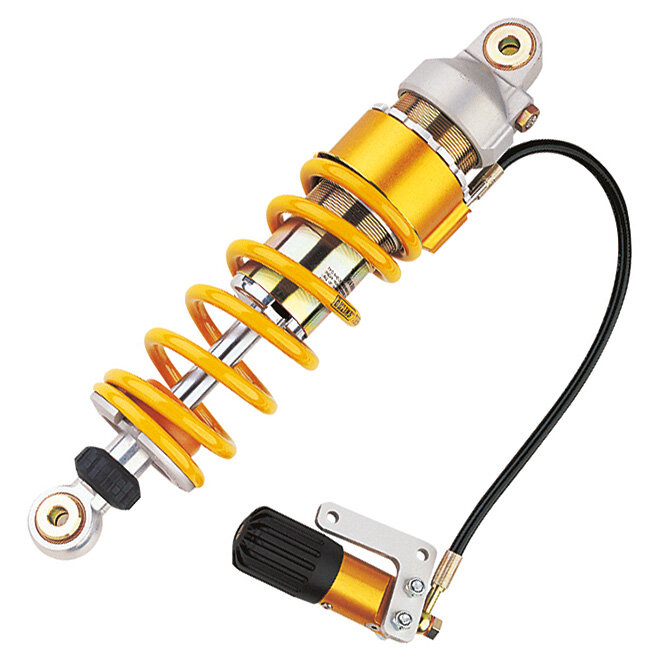

The Ohlins YA224 STX 46 Street rear shock is built to improve chassis control and feel on the Yamaha XSR 900 in everyday road riding. It uses a gas-pressurised, oil/gas separated design to help maintain consistent damping response as conditions change. External adjustability lets you tailor the shock to your bike setup, load and riding style.

Ohlins | Made to race, perfected to ride

Developed from Ohlins suspension know-how, the STX 46 Street range focuses on clear feedback, stable support and predictable grip for street use. This shock is intended as a fit-for-model replacement unit for the XSR 900.

Shock design & features

  • STX 46 Street rear mono shock format
  • Gas-pressurised, oil/gas separated architecture for consistent damping behaviour
  • Built as a complete rear shock unit suited to road conditions

Tuning controls

  • Rebound damping adjustment
  • Spring preload adjustment

Base setup (factory preset)

This shock is supplied with an Ohlins baseline setting intended to work as a starting point for the Yamaha XSR 900. Fine-tuning rebound and preload is typically done to suit rider weight, road surface and luggage or passenger use.

Before you install

Confirm fitment for your exact model and year, and check clearances around linkages and exhaust. After installation, set static and rider sag and then adjust rebound to match the support you want without compromising grip.

Serviceability/lifecycle

As a serviceable Ohlins unit, the shock can be maintained over its life to keep performance consistent. Periodic oil and seal service helps preserve damping quality and long-term reliability.

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU YA224
Model # S46DR1S
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.300 x 0.300 x 0.500m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear Mono
Shock Length Eye to Eye (mm) 327.0
Spring Rate Standard 105.0 N/mm
Type Code S46DR1S
Stroke Metal to Metal (mm) 71.5
Product Family STX 46 Street
Fitted Spring 01096-36
Spring Colour Yellow
Rec. Ohlins Oil 01309-
