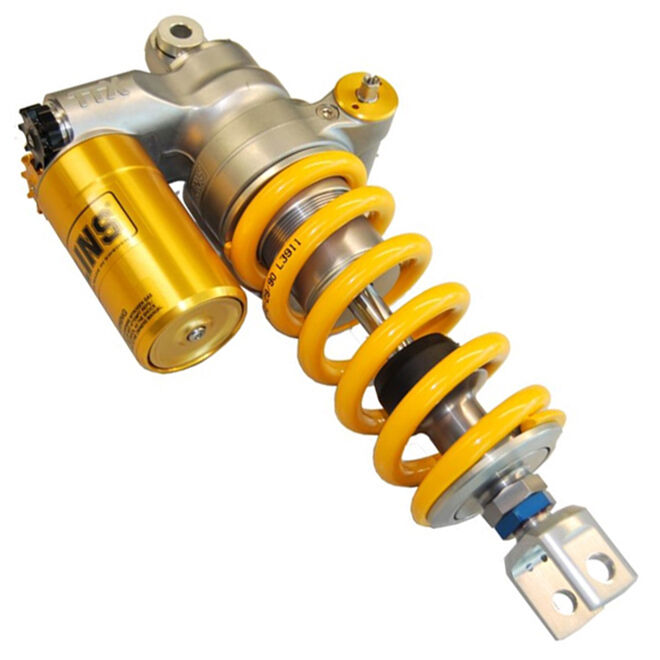

The Ohlins AP466 TTX GP rear shock is designed for the Aprilia RSV4 1000 and RSV4 1000 RR, focusing on controlled chassis behaviour and clear rear-tyre feedback. Built around Ohlins’ TTX GP platform, it is intended for riders who want consistent damping response and a suspension package that can be properly tuned and maintained. This unit is aimed at precision setup work rather than a one-setting solution.

Ohlins | Made to race, perfected to ride

TTX GP sits in Ohlins’ race-oriented shock family, developed for repeatable damping and predictable feel when the bike is being ridden hard. The goal is stable support through braking, mid-corner load, and drive, helping you keep the chassis composed as conditions change.

Shock design & features

This is a gas-pressurised rear mono shock with oil and gas separated (not an emulsion layout). The TTX architecture is designed to maintain damping consistency and reduce the likelihood of fade during sustained track use.

Tuning controls

  • Rebound damping adjustment: manages how the rear returns after compression, influencing stability, grip feel, and how the bike behaves over repeated bumps.
  • Compression damping adjustment: controls resistance to compression under braking loads, kerb impacts, and acceleration squat, affecting support and line-holding.
  • Ride height adjustment: allows chassis attitude changes independent of preload, helping refine steering response, stability, and traction balance.

Base setup (factory preset)

The factory baseline is intended as a workable starting point for the RSV4 platform, leaving adjustment range for tyre choice, rider preference, and track surface. Final tuning is typically done by balancing rear support with traction while matching overall front-to-rear behaviour.

Serviceability / lifecycle

This Ohlins unit is designed to be serviced and reconditioned. Routine oil and seal maintenance helps preserve damping consistency and protect internal components, particularly when used regularly in track conditions.

SKU AP466
Model # T36PR1C1LB
Barcode # AP466
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.300 x 0.300 x 0.500m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear Mono
Shock Length Eye to Eye (mm) 310.0 +6/-0
Spring Rate Standard 95.0 N/mm
Type Code T36PR1C1LB
Stroke Metal to Metal (mm) 67.0
Product Family TTX GP
Fitted Spring: 21040-31
Spring Colour Yellow
