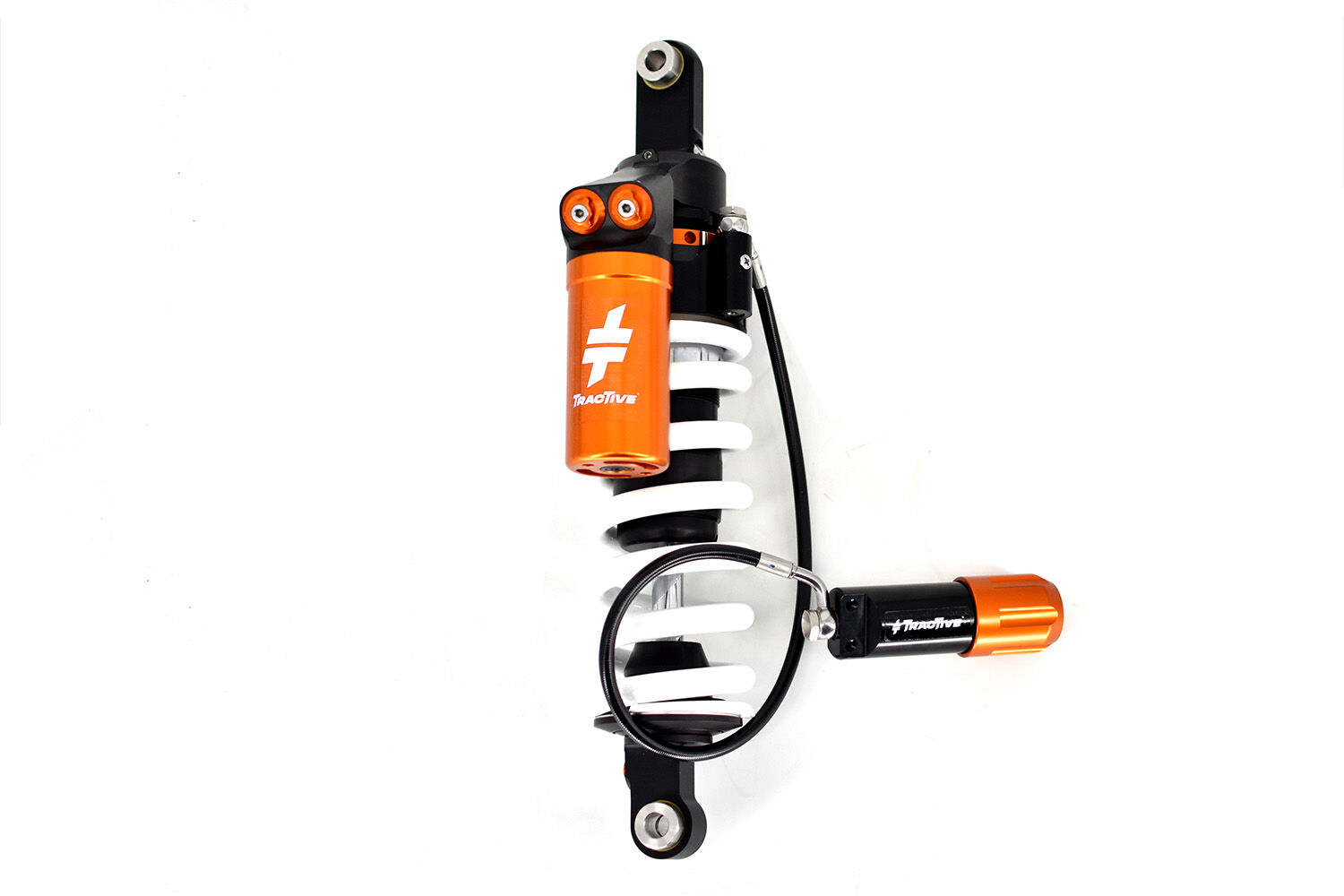

The TracTive X-TREME shock for Ducati DesertX is a closed, pressurised 46 mm rear shock designed to deliver consistent damping over long, mixed-terrain rides. Its sealed architecture helps reduce fade by keeping the oil under pressure and limiting aeration. This configuration includes an external reservoir and a spring with remote hydraulic preload adjustment.
Design & features
- Closed, pressurised monotube shock design for more stable damping behaviour
- External reservoir with oil/gas separation piston to help manage heat and cavitation
- Supplied with a spring and remote hydraulic preload adjuster for convenient load changes
Tuning Controls
- Triple-adjustable damping: rebound, plus high- and low-speed compression adjustment
- Remote hydraulic preload adjustment for fast setup changes without tools
Base Setup (factory preset)
The shock is supplied with TracTive’s baseline settings from the factory, intended as a starting point. Final setup will depend on rider weight, typical luggage/passenger use, and riding conditions.
Who is this for?
- Ducati DesertX riders who want broad tuning range for mixed on-road and off-road use
- Riders frequently changing load (luggage/passenger) and wanting quick preload changes
- Owners looking for consistent damping on longer or hotter rides where fade control matters
Before You Install
- Confirm model fitment for your Ducati DesertX and intended use
- Set sag after installation and re-check after initial bedding-in
- Record your original adjuster positions before making changes so you can return to a known baseline
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
 When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 46DU21-T5508-TR |
| Model # | Active Feb 2025 |
| Barcode # | 46DU21T5508TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | X-TREME |
If your Motorcycle is listed below, this product will suit:
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Rebound & Compression High + Low Speed |
| Shock Options - Hydraulic Preload Adjuster | Hydraulic with knob |
| Seat Height Change (mm) | Lowered -25 |
| Shock Length Eye to Eye (mm) | 342.0 |
| Spring Rate Standard | 85 N/mm |
| Type Code | X-TREME |
| Stroke Metal to Metal (mm) | 88.0 |
| Notes | PDSII anti-bottoming |
| Fitted Spring | 85-180 |
