Teknik eX-PERIENCE Shock Series

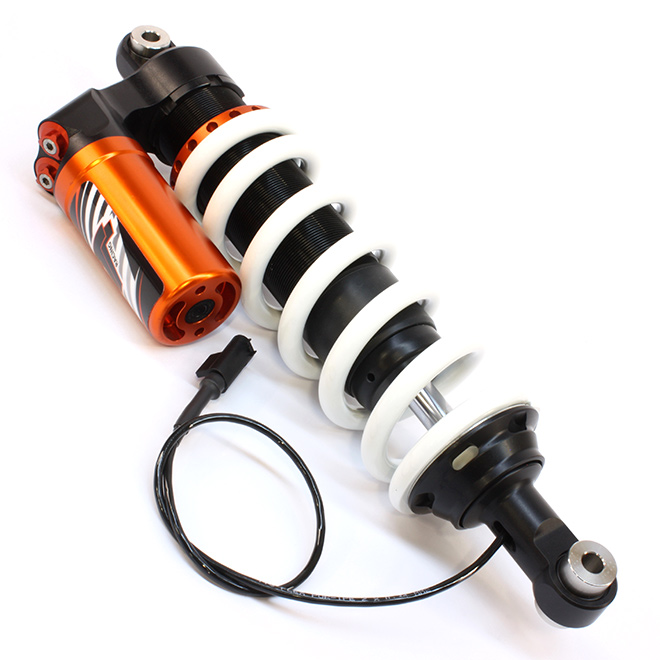

These performance piggyback shocks are an upgrade over the basic X-Cite shock absorber range, with all damping adjuster options. They need it too, being designed as a jack of all trades. Daily commuting, sporty cruising, tarmac touring, dirt roads, some light adventuring - a bit of everything.

Replacing the entire stock ESA electronically controlled damper assembly, they are completely plug & play, with no loss of advanced features or weird error messages on the screen - bolting to the factory mounts & plugging directly into the OEM electrical wiring loom.

Separate precision high & low speed compression adjusters plus increased rebound adjustability range & response speeds over standard mean perfect settings anywhere, anytime. Available with multiple spring rates to suit all rider weights, a high flow 46mm main valving piston on an over-sized 16mm chrome-moly shaft, plus heavy duty stainless steel bushes, they are durable & reliable. They are fully rebuildable too; with the cold-forged 6082 aluminium shock body & external reservoir easily opened, providing easy servicing & tuning for any application.

45 Products Found
Tractive eX-PERIENCE Shock BMW R 1200 GS

Tractive eX-PERIENCE Shock BMW R 1200 GS

Front | Lowered -25mm
(SKU: 46BM13-P4118-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Seat Height Change (mm):   Lowered -25
Shock Length Eye to Eye (mm):   381.0
Spring Rate Standard:   50 N/mm
Type Code:   eX-PERIENCE
Stroke Metal to Metal (mm):   86.0
Fitted Spring:   50-205

Tractive eX-PERIENCE Shock BMW R 1200 GS

Tractive eX-PERIENCE Shock BMW R 1200 GS

Front | Standard Height
(SKU: 46BM13-P4140-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Seat Height Change (mm):   Standard Height
Shock Length Eye to Eye (mm):   389.0
Spring Rate Standard:   50 N/mm
Type Code:   eX-PERIENCE
Stroke Metal to Metal (mm):   95.0
Fitted Spring:   50-205

Tractive eX-PERIENCE Shock BMW R 1200 GS

Tractive eX-PERIENCE Shock BMW R 1200 GS

Rear | Lowered -25mm | EPA
(SKU: 46BM13-P4717-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Electro-hydraulic
Seat Height Change (mm):   Lowered -25
Shock Length Eye to Eye (mm):   394.0
Spring Rate Standard:   150 N/mm
Type Code:   eX-PERIENCE
Stroke Metal to Metal (mm):   74.0
Fitted Spring:   150-205
$2,195.00
43% OFF RRP $3,845.00
5 In Stock
See Options

Tractive eX-PERIENCE Shock BMW R 1200 GS

Tractive eX-PERIENCE Shock BMW R 1200 GS

Rear | Standard Height | EPA
(SKU: 46BM13-P4729-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Electro-hydraulic
Seat Height Change (mm):   Standard Height
Shock Length Eye to Eye (mm):   402.0
Spring Rate Standard:   150 N/mm
Type Code:   eX-PERIENCE
Stroke Metal to Metal (mm):   82.0
Fitted Spring:   150-205
$2,195.00
36% OFF RRP $3,455.00
5 In Stock
See Options

Tractive eX-PERIENCE Shock BMW R 1250 GS

Tractive eX-PERIENCE Shock BMW R 1250 GS

Front | Standard Height
(SKU: 46BM18-P4140-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Seat Height Change (mm):   Standard Height
Shock Length Eye to Eye (mm):   389.0
Spring Rate Standard:   50 N/mm
Type Code:   eX-PERIENCE
Stroke Metal to Metal (mm):   100.0
Fitted Spring:   50-205



Tractive eX-PERIENCE Shock BMW R 1250 GS

Tractive eX-PERIENCE Shock BMW R 1250 GS

Front | Sport Chassis
(SKU: 46BM18-P4147-TR-01)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Seat Height Change (mm):   Sport Chassis +25
Shock Length Eye to Eye (mm):   396.0
Spring Rate Standard:   50 N/mm
Type Code:   eX-PERIENCE
Stroke Metal to Metal (mm):   102.0
Fitted Spring:   50-205

Tractive eX-PERIENCE Shock BMW F 850 GS Adventure

Tractive eX-PERIENCE Shock BMW F 850 GS Adventure

Rear | Standard Height | EPA
(SKU: 46BM19-P4703-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Electro-hydraulic
Seat Height Change (mm):   Standard Height
Shock Length Eye to Eye (mm):   395.0
Spring Rate Standard:   150 N/mm
Type Code:   eX-PERIENCE
Stroke Metal to Metal (mm):   86.0
Fitted Spring:   150-205

Tractive eX-PERIENCE Shock BMW F 900 GS Adventure

Tractive eX-PERIENCE Shock BMW F 900 GS Adventure

Rear | Standard Height | EPA
(SKU: 46BM19-P4703-TR-01)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Electro-hydraulic
Seat Height Change (mm):   Standard Height
Shock Length Eye to Eye (mm):   395.0
Spring Rate Standard:   150 N/mm
Type Code:   eX-PERIENCE
Stroke Metal to Metal (mm):   86
Fitted Spring:   150-205



Tractive eX-PERIENCE Shock BMW R 1200 GS

Tractive eX-PERIENCE Shock BMW R 1200 GS

Front | Lowered -50mm
(SKU: 46BM13-P4142-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Seat Height Change (mm):   Lowered -50
Shock Length Eye to Eye (mm):   372.0
Spring Rate Standard:   50 N/mm
Type Code:   eX-PERIENCE
Stroke Metal to Metal (mm):   79.0
Fitted Spring:   50-205

Tractive eX-PERIENCE Shock BMW R 1200 GS

Tractive eX-PERIENCE Shock BMW R 1200 GS

Rear | Lowered -25mm | EPA
(SKU: 46BM13-P4817-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Electro-hydraulic
Seat Height Change (mm):   Lowered -25
Shock Length Eye to Eye (mm):   394.0
Spring Rate Standard:   150 N/mm
Type Code:   eX-PERIENCE
Stroke Metal to Metal (mm):   75
Fitted Spring:   150-205

Tractive eX-PERIENCE Shock BMW R 1200 GS

Tractive eX-PERIENCE Shock BMW R 1200 GS

Rear | Standard Height | EPA
(SKU: 46BM13-P4829-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Electro-hydraulic
Seat Height Change (mm):   Standard Height
Shock Length Eye to Eye (mm):   402.0
Spring Rate Standard:   150 N/mm
Type Code:   eX-PERIENCE
Stroke Metal to Metal (mm):   83
Fitted Spring:   150-205

Tractive eX-PERIENCE Shock BMW R 1200 GS

Tractive eX-PERIENCE Shock BMW R 1200 GS

Rear | Lowered -50mm | EPA
(SKU: 46BM13-P4841-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Electro-hydraulic
Seat Height Change (mm):   Lowered -50
Shock Length Eye to Eye (mm):   386.0
Spring Rate Standard:   150 N/mm
Type Code:   eX-PERIENCE
Stroke Metal to Metal (mm):   67
Fitted Spring:   150-205


Tractive eX-PERIENCE Shock BMW R 1200 GS Adventure

Tractive eX-PERIENCE Shock BMW R 1200 GS Adventure

Front | Lowered -40mm
(SKU: 46BM14-P4150-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic and Manual
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Seat Height Change (mm):   Lowered -40
Shock Length Eye to Eye (mm):   384.0
Spring Rate Standard:   55 N/mm
Type Code:   eX-PERIENCE
Stroke Metal to Metal (mm):   90.0
Fitted Spring:   55-205

Tractive eX-PERIENCE Shock BMW R 1200 GS Adventure

Tractive eX-PERIENCE Shock BMW R 1200 GS Adventure

Rear | Standard Height | EPA
(SKU: 46BM14-P4746-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Electro-hydraulic
Seat Height Change (mm):   Standard Height
Shock Length Eye to Eye (mm):   410.0
Spring Rate Standard:   160 N/mm
Type Code:   eX-PERIENCE
Stroke Metal to Metal (mm):   90.0
Fitted Spring:   160-205

Tractive eX-PERIENCE Shock BMW R 1200 GS Adventure

Tractive eX-PERIENCE Shock BMW R 1200 GS Adventure

Rear | Lowered -40mm | EPA
(SKU: 46BM14-P4749-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Electro-hydraulic
Seat Height Change (mm):   Lowered -40
Shock Length Eye to Eye (mm):   397.0
Spring Rate Standard:   160 N/mm
Type Code:   eX-PERIENCE
Stroke Metal to Metal (mm):   77.0
Fitted Spring:   160-180

These performance piggyback shocks are an upgrade over the basic X-Cite shock absorber range, with all damping adjuster options. They need it too, being designed as a jack of all trades. Daily commuting, sporty cruising, tarmac touring, dirt roads, some light adventuring - a bit of everything.

Replacing the entire stock ESA electronically controlled damper assembly, they are completely plug & play, with no loss of advanced features or weird error messages on the screen - bolting to the factory mounts & plugging directly into the OEM electrical wiring loom.

Separate precision high & low speed compression adjusters plus increased rebound adjustability range & response speeds over standard mean perfect settings anywhere, anytime. Available with multiple spring rates to suit all rider weights, a high flow 46mm main valving piston on an over-sized 16mm chrome-moly shaft, plus heavy duty stainless steel bushes, they are durable & reliable. They are fully rebuildable too; with the cold-forged 6082 aluminium shock body & external reservoir easily opened, providing easy servicing & tuning for any application.
